Install the drive shaft in the transmission

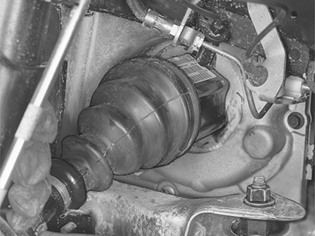

Fig 1: Installing Drive Shaft In Transmission
GLL109290Courtesy of VOLVO CARS OF NORTH AMERICA.
NOTE:

Do not damage the seal.

Ensure that the drive shaft snap ring  engages correctly in the groove on the transmission differential gear. Check by pulling the drive shaft constant velocity joint  .
