Installing the oil cooler

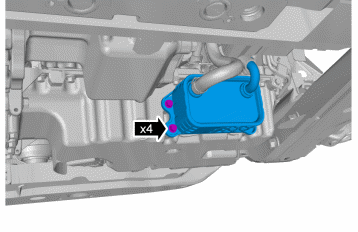

Fig 1: Oil Cooler And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the oil cooler with new O-rings.

Tighten the screws, 4 pcs, crosswise. Tighten torque: 17 Nm. Tightening torque
