Installing the angle gear

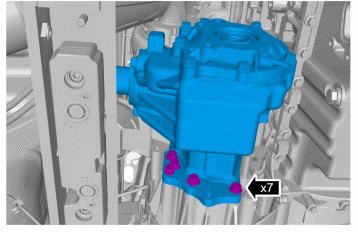

Fig 1: Bevel Gear Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the bevel gear. Use new  screws. Tighten the screws alternately to light contact. Tightening torque

Install the charge air pipe with hose on the turbocharger (TC).
