Cleaning brake calipers

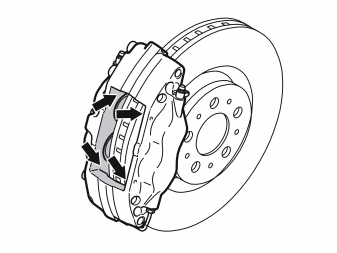

Fig 1: Identifying Caliper Holders
GLL106623Courtesy of VOLVO CARS OF NORTH AMERICA.
NOTE:

Clean and check the brake pad mating surfaces in the brake caliper and caliper holder (see the arrows).

Check the brake caliper and the piston's dust protection.

NOTE:

If the dust boot is damaged dirt may have penetrated the cylinder. The brake caliper must be replaced.
