Front Wheel Brake (B5254T4; 2004-2007)
>>
Brake disc, replacing
>>
Removing the brake disc
Removing the brake disc

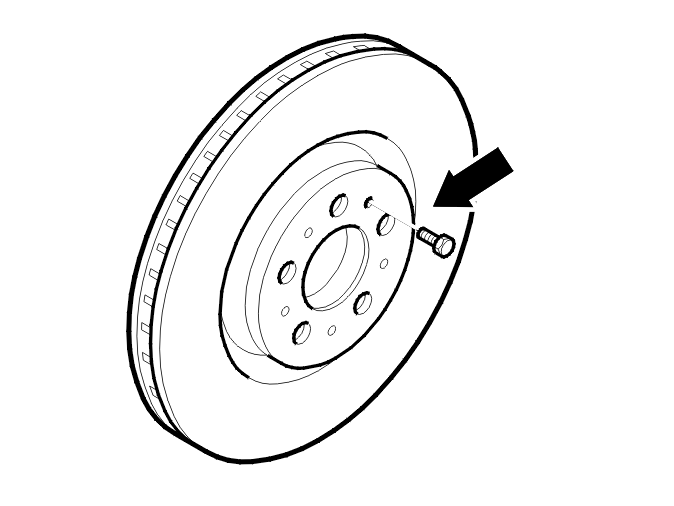

Fig 1: Identifying Brake Disc
Courtesy of VOLVO CARS OF NORTH AMERICA.
Remove:
the screw from the brake disc
the brake disc.
Courtesy of VOLVO CARS OF NORTH AMERICA.
