Removing the brake caliper

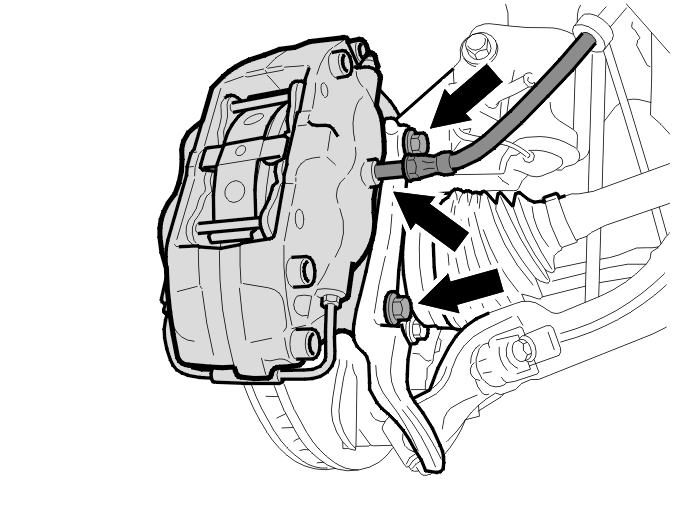

Fig 1: Identifying Brake Caliper Screws
GLL106626Courtesy of VOLVO CARS OF NORTH AMERICA.

Slacken the off brake hose approximately half a turn.

Remove the screws holding brake caliper.

Unscrew the brake caliper from the brake hose.

Drain the remaining brake fluid.
