Removing the brake caliper: Notes

Slacken the off brake hose approximately half a turn.

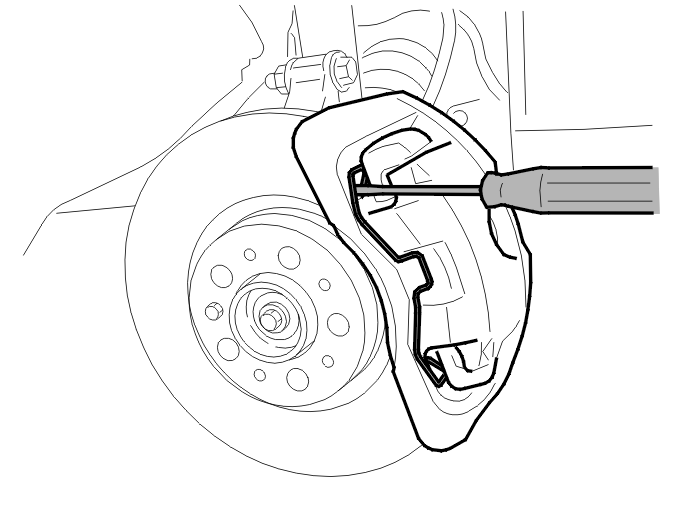

Remove the retaining spring carefully so as not to deform it.

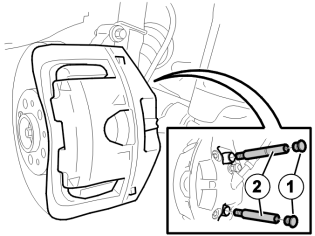

Remove:

• the protective caps (1) from the two locating pins (2)
• the locating pins, use hex socket 7 mm.

Remove:

• the brake caliper from the holder
• the brake pads.

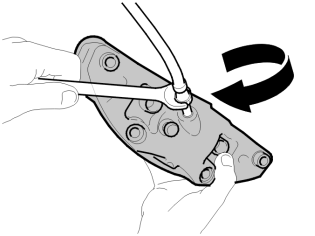

Unscrew the brake caliper from the brake hose.

Drain the remaining brake fluid.
