Replacing the lock side piece

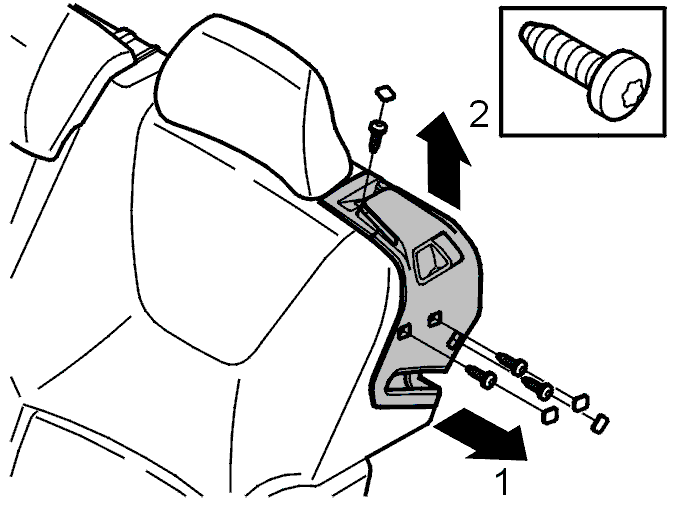

Fig 1: Lock Side Piece

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the cover
• the screw
• Pull the guide to one side. Lift part of the panel over the guide. Slide the guide back to disconnect the other side.
