Removing rear end mountings (third row) without access hole

Make a cut-out in the seat rail for the seat cushion.

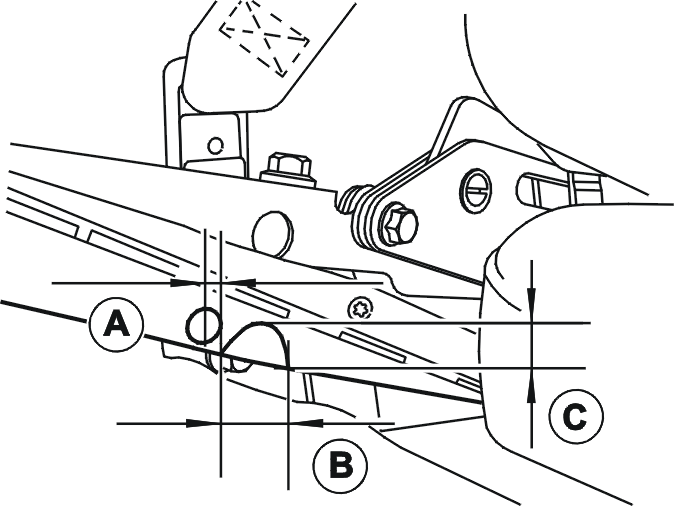

Fig 1: Identifying Dimensions For Cut-Out In Seat Cushion Rail

Courtesy of VOLVO CARS OF NORTH AMERICA.

Measure up the cut-out according to the following dimensions.

A=11 mm.

B=25 mm.

C=15 mm.

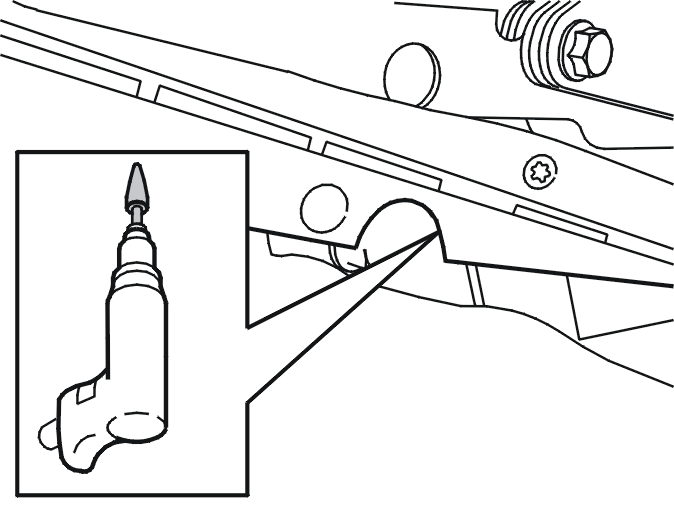

Fig 2: Milling Out Access Hole Using Rotary File

Courtesy of VOLVO CARS OF NORTH AMERICA.

Push the carpet to one side.

Mill out the access hole. Use a rotary file.

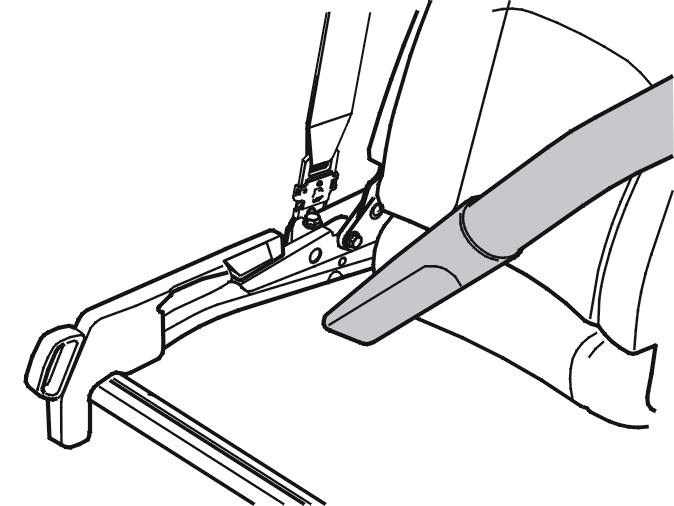

Fig 3: Vacuuming Particles From Milling

Courtesy of VOLVO CARS OF NORTH AMERICA.

Vacuum up the dust/debris from the milling. Wipe clean the seat rail for the seat cushion.

Fold back the carpet.
