Transferring Components

Transfer:

• the cover over the towing eyelet
• the energy absorber (the foam/shock absorber). Press it off the rear section
• weatherstrip Pull it off.

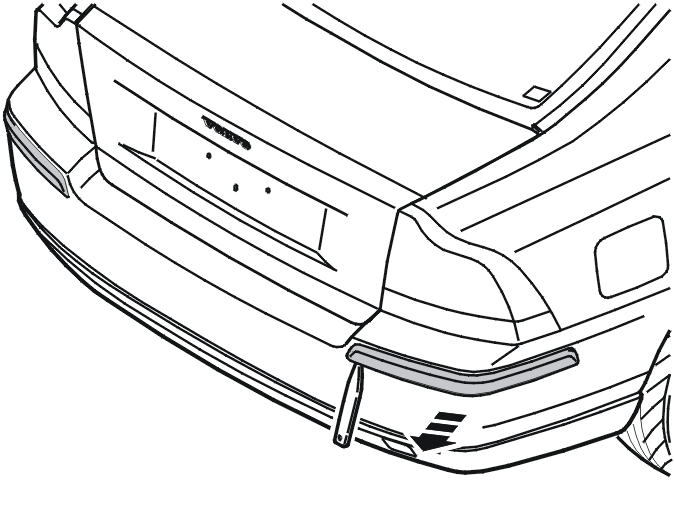

Fig 1: Transferring Weatherstrips Using Weatherstrip Tool

Courtesy of VOLVO CARS OF NORTH AMERICA.

Transfer the 2 weatherstrips. Use a weatherstrip tool.
