Replacing the Rear Mounting Bracket

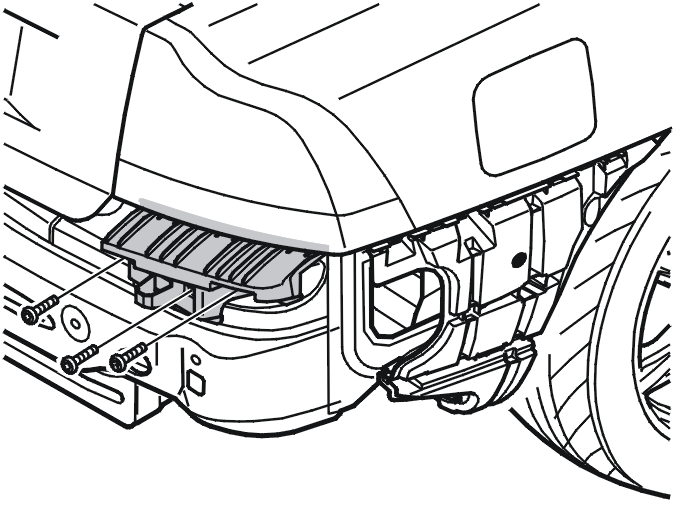

Fig 1: Locating Rear Mounting Bracket Screws
Courtesy of VOLVO CARS OF NORTH AMERICA.
Remove:
the screws, 3 per bracket.
