Replacing the Rear Bumper Spoiler

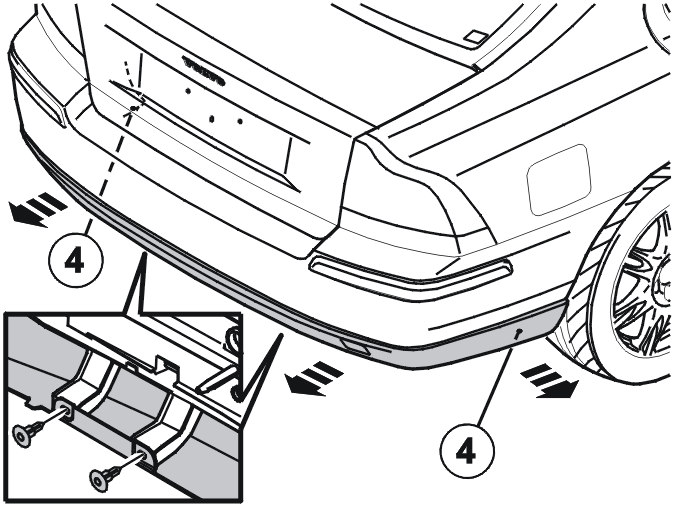

Fig 1: Pulling Sides Of Spoiler Out Then Pull Whole Cover Backwards

Courtesy of VOLVO CARS OF NORTH AMERICA.

HINT: The bumper does not need to be unscrewed from the vehicle for the spoiler to be removed.

Remove the cover for the towing eye.

Remove:

• the clips (4), 1 on each side, at the bottom of the casing
• the 4 clips on the underside of the casing.

Pull the sides of the spoiler out. Then pull the whole cover backwards.
