Replacing Side Mounting Brackets

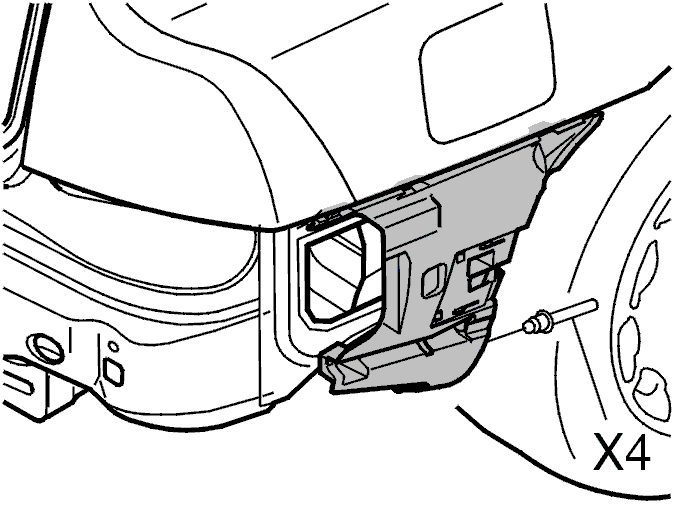

Fig 1: Identifying Side Mounting Brackets

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the rivets, 4 per bracket. See Removing Rivet

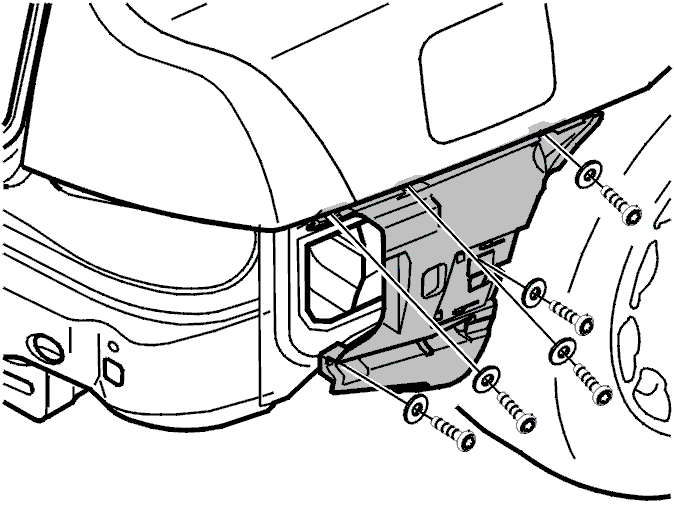

Fig 2: Identifying Side Mounting Bracket Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

• the screws, 5 per bracket.
