Base Plate And Toolbox

Removing the base plate and tool box

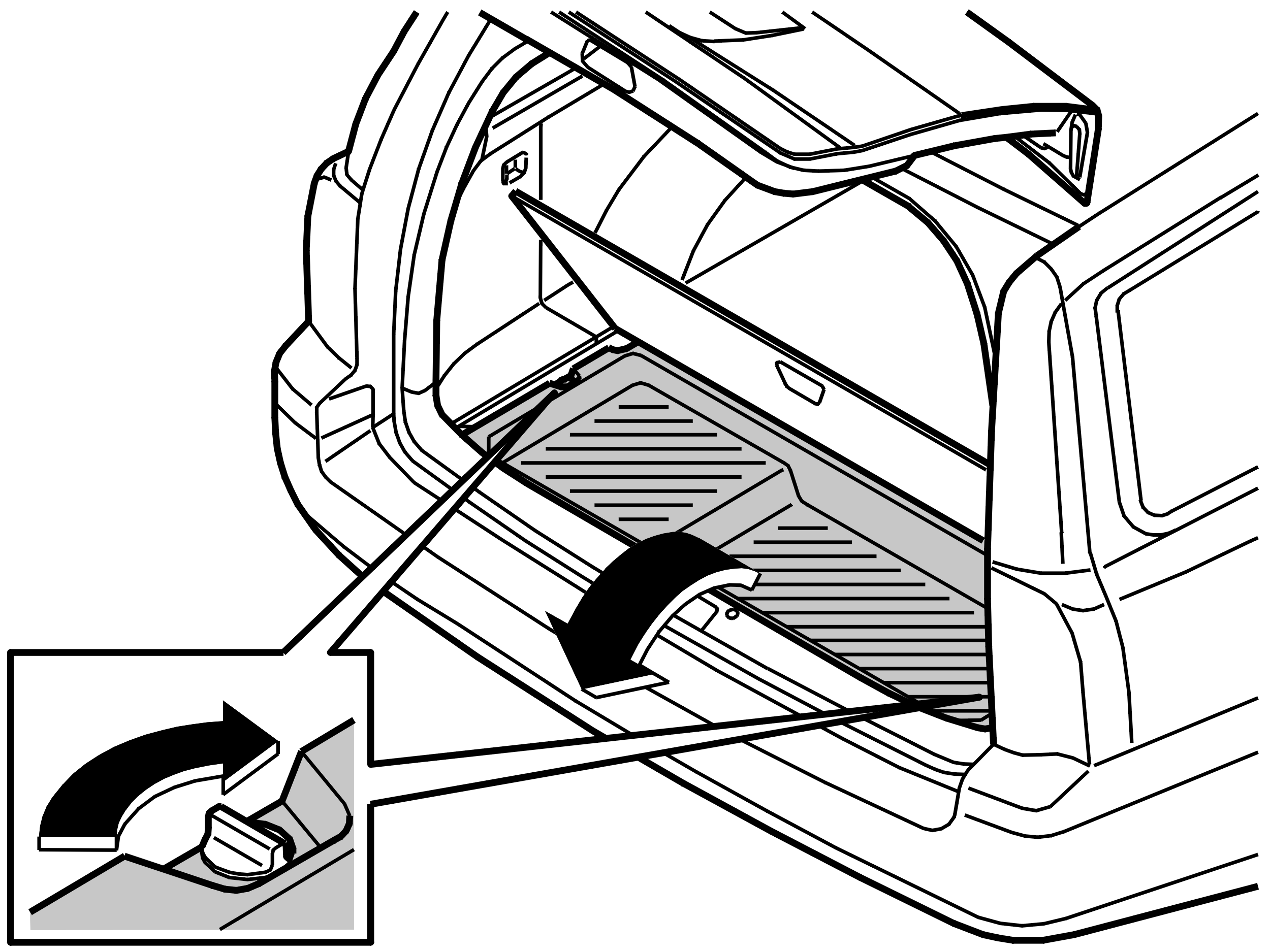

Fig 1: Turning 2 Clips 90 Degrees & Lifting Up Base Plate And Toolbox

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Open the rear floor hatch
• Turn the 2 clips 90°.
• Lift up the base plate and toolbox.

Installing the base plate and toolbox

Install:

In reverse order.
