Hinges, Trunk Lid, Replacing

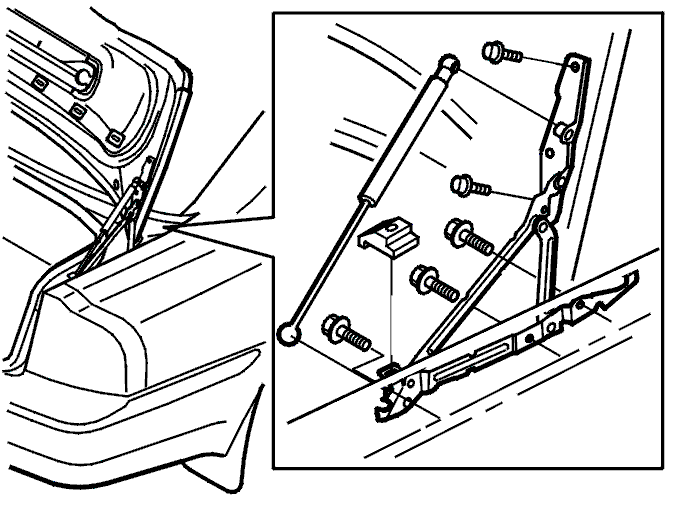

Fig 1: Trunk Lid Hinge

Courtesy of VOLVO CARS OF NORTH AMERICA.

The hinge is secured by 2 screws in the tailgate and 3 screws in the bodywork.

A gas strut on either side opens the tailgate.

Remove:

• the cable duct
• the clips for the gas strut
• the gas strut
• the screws.

Install:

In reverse order.

If a new tailgate is being used: Transfer the rubber stops.
