Removing the Mechanism/Mechanical Cable

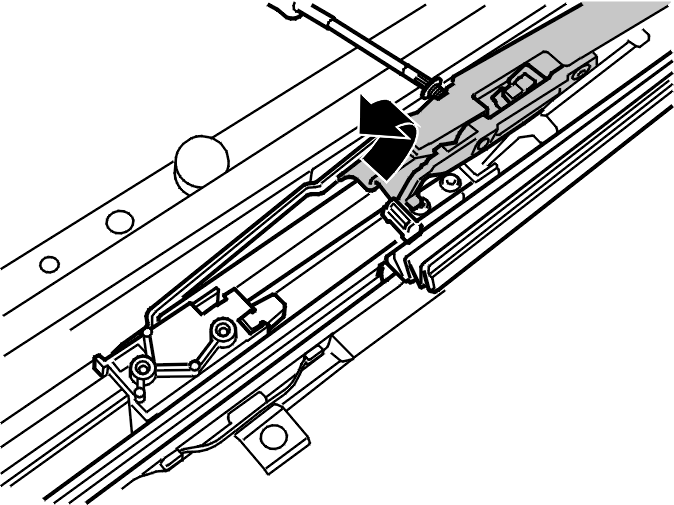

Fig 1: Angling Mechanism Up

Courtesy of VOLVO CARS OF NORTH AMERICA.

Angle the mechanism up.

Remove the screw.

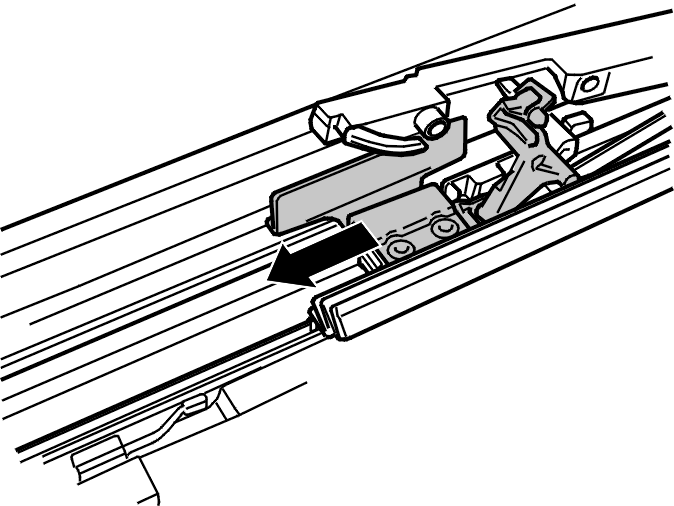

Fig 2: Pulling Carriage Back And Removing From Slides

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull the carriage as far back as possible.

Remove the carriage from the slides.

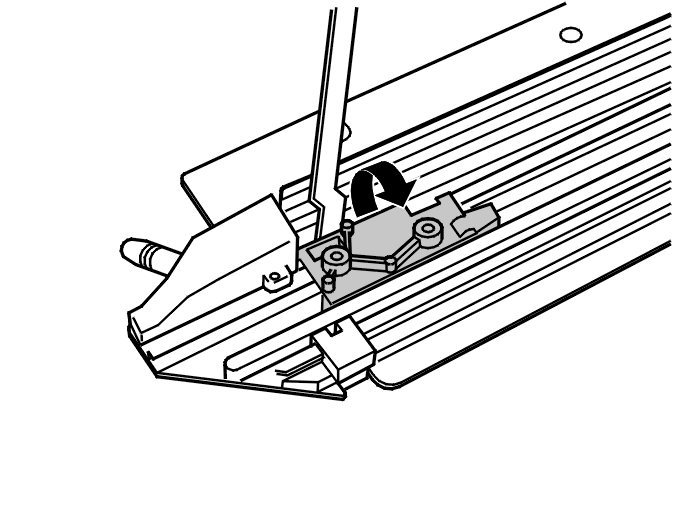

Fig 3: Removing Screw And Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

NOTE: Note the position of the locating pin for the drive plate against the bracket.

Fig 4: Pulling Drive Plate Back As Far As Possible

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Note the position of the locating pin for the drive plate against the mechanism.

Pull the drive plate as far back as possible.

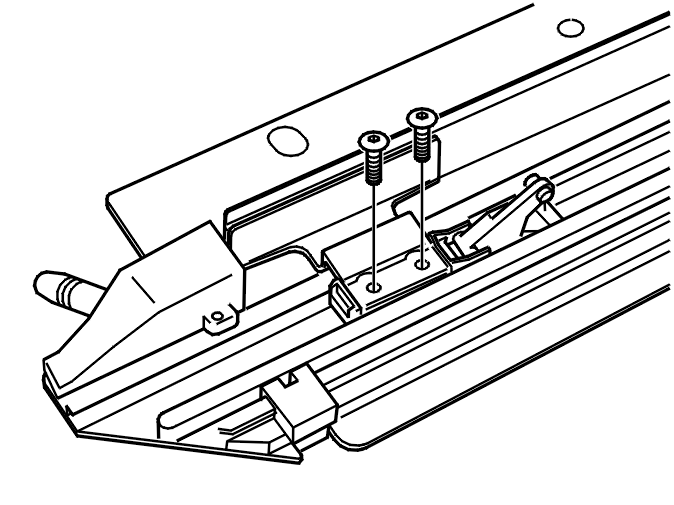

Fig 5: Removing Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the 2 screws.

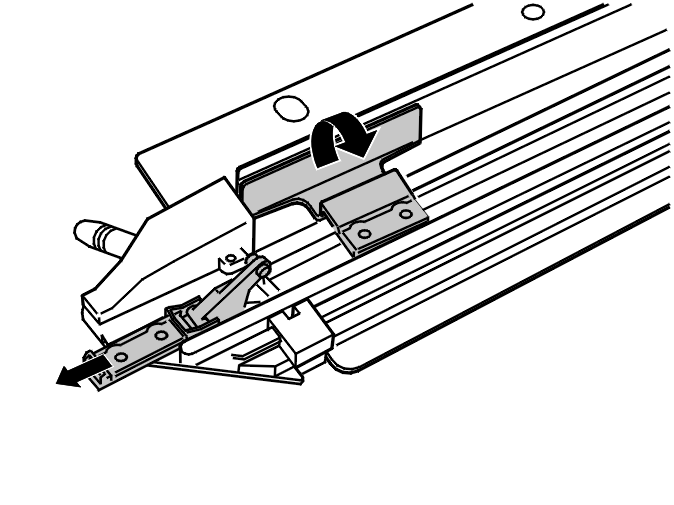

Fig 6: Pulling Out Carriage And Mounting/Mechanical Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull the carriage out.

Angle up and pull out the mounting/mechanical cable.

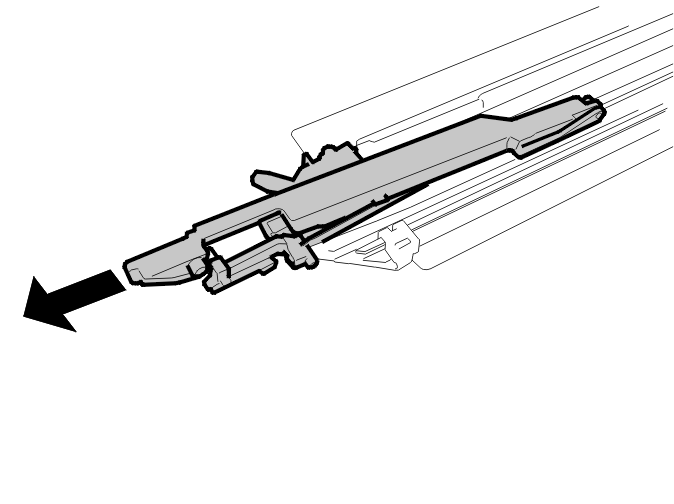

Fig 7: Withdrawing Mechanism

Courtesy of VOLVO CARS OF NORTH AMERICA.

Withdraw the mechanism.
