Installing the Mechanism/Mechanical Cable

NOTE: For tightening torques, see Tightening Torque .

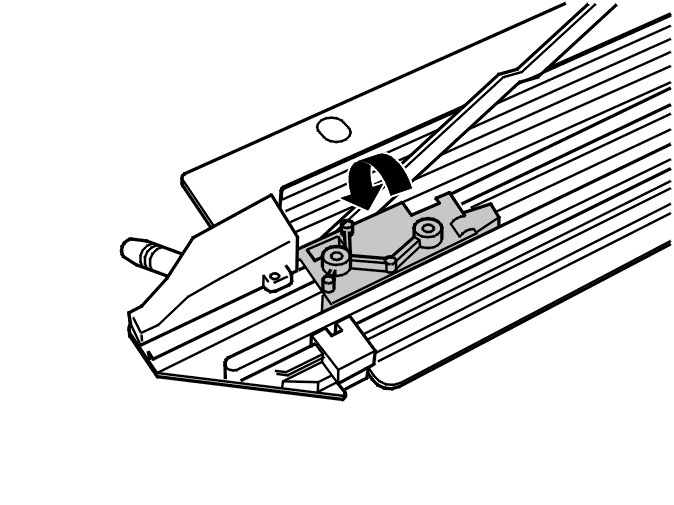

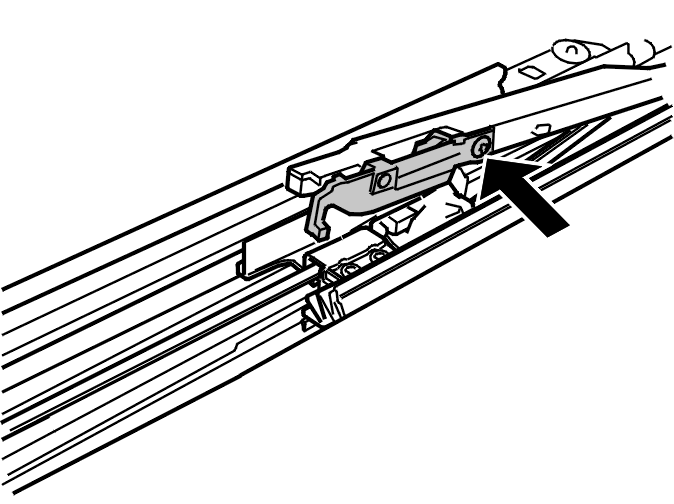

Fig 1: Removing Bracket From Mechanism

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the bracket from the mechanism (applies to service kit).

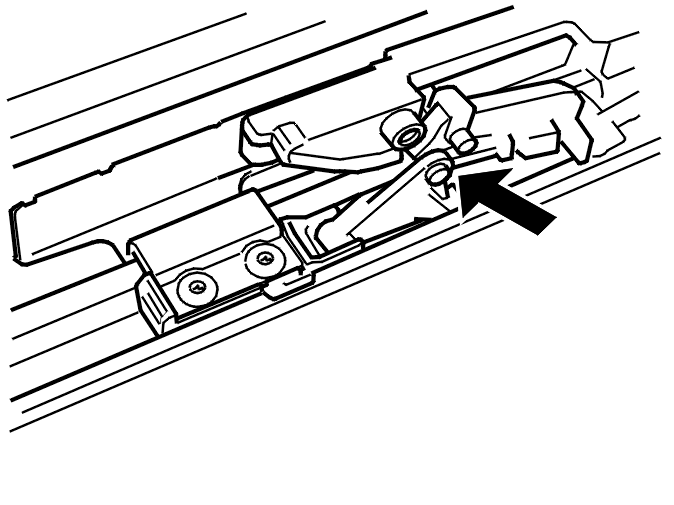

Fig 2: Sliding Mechanism To Front Position

Courtesy of VOLVO CARS OF NORTH AMERICA.

Slide in the mechanism to the front position.

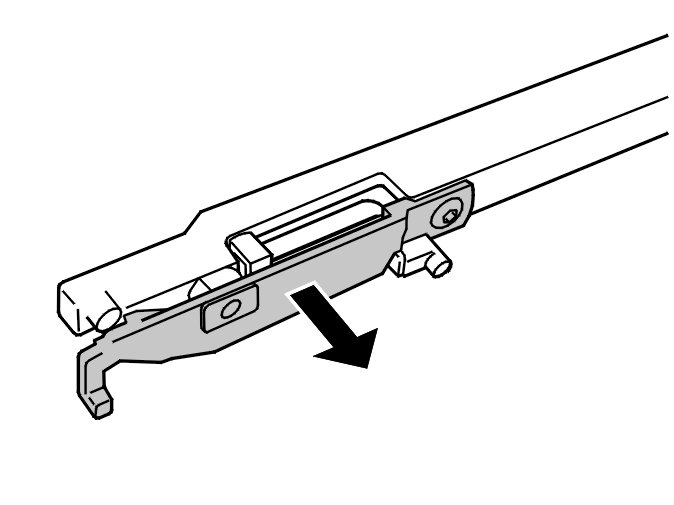

Fig 3: Removing Mounting/Mechanical Cable From Drive Plate

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the mounting/mechanical cable from the new drive plate (applies to service kit).

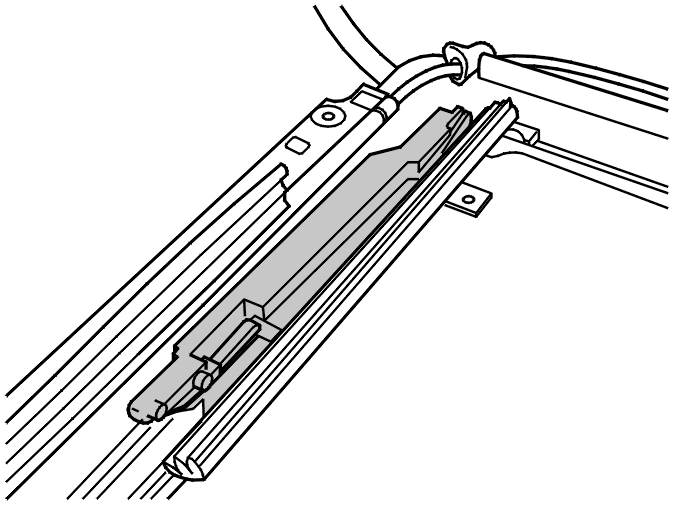

Fig 4: Sliding In Mounting/Mechanical Cable And Drive Plate Into Groove

Courtesy of VOLVO CARS OF NORTH AMERICA.

Slide the drive plate into the groove.

Slide in the mounting/mechanical cable.

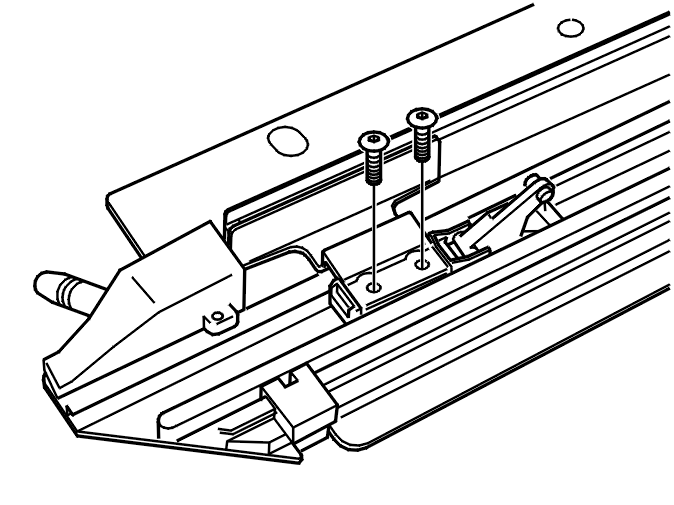

Fig 5: Installing Mounting/Mechanical Cable On Drive Plate Using Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the mounting/mechanical cable on the drive plate using the 2 M4 screws. Tighten.

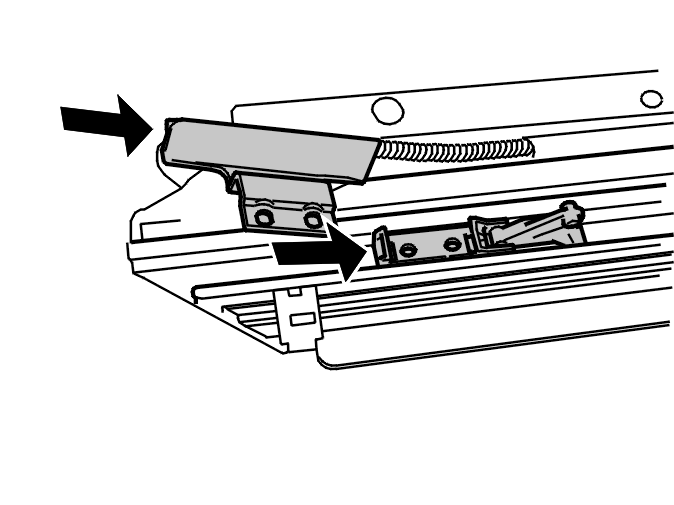

Fig 6: Sliding In Drive Plate With Mounting/Mechanical Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Slide in the drive plate with the mounting/mechanical cable. Guide it in against the mechanism.

Fig 7: Installing Bracket For Mechanism

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the bracket for the mechanism.

NOTE: Position the guide pin for the drive plate against the bracket. Use the 1 M4 screw. Tighten.

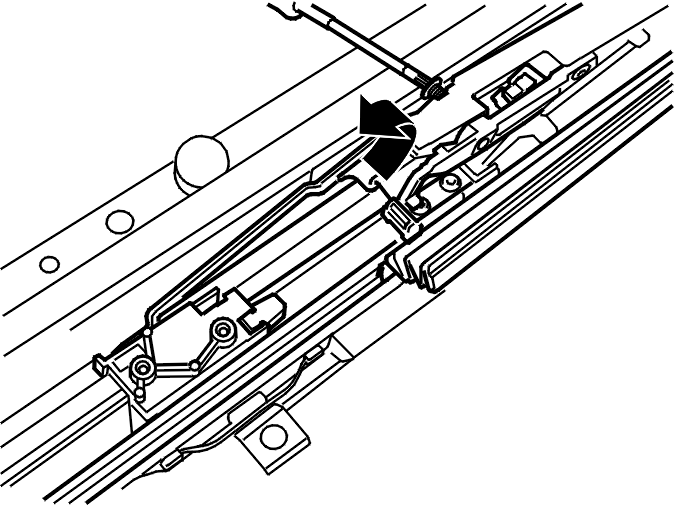

Fig 8: Angling In And Pressing Mounting For Gutter Into Place

Courtesy of VOLVO CARS OF NORTH AMERICA.

Angle in and press the mounting for the gutter into place.

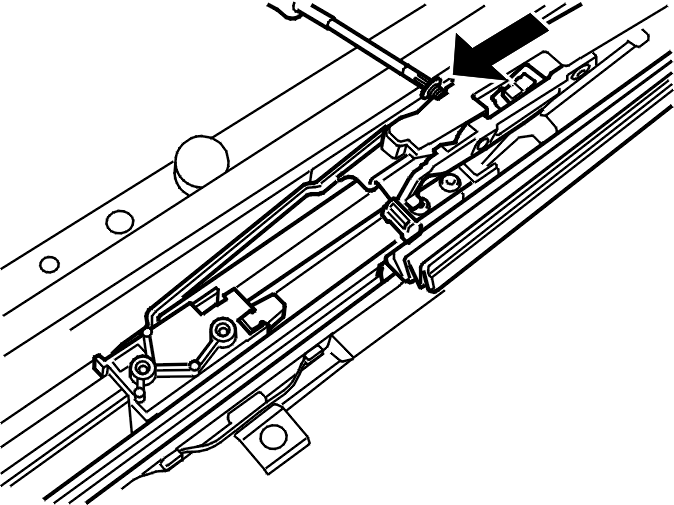

Fig 9: Sliding In Mounting For Gutter And Installing Link Rod For Mechanism

Courtesy of VOLVO CARS OF NORTH AMERICA.

Slide in the mounting for the gutter.

Install the link rod for the mechanism. Tighten the screw.
