Installing the Sun Roof Control Module

Install:

• the small connector
• the control module
• 1 M6 screw. Tighten
• the large connector
• the upper electronic module (UEM). See Interior Lighting And Upper Electronic Module (UEM), Replacing .

Calibrate the control module for the sun roof:

The sun roof must be closed.

Ignition in position I.

1

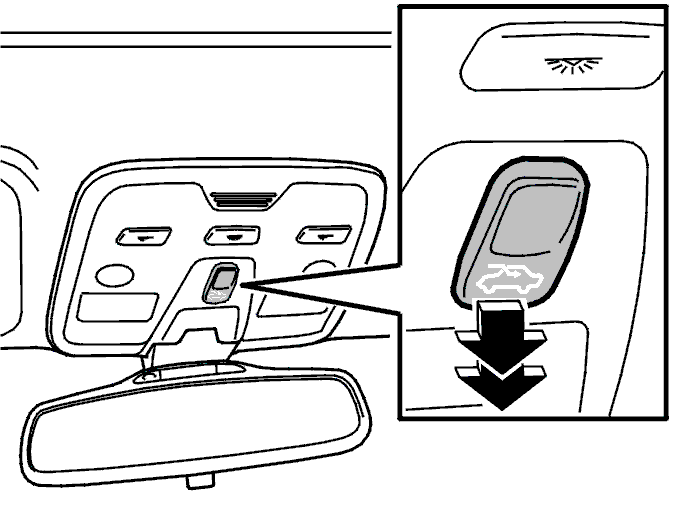

Press the sun roof switch so that the sun roof is in the tilt position.

Release the switch.

2

Press the switch (in the tilt position) in again for at least 5 seconds so that the sun roof closes.

Release the switch.

The calibration is complete.

HINT: If the sun roof has still not moved to the correct position:

HINT: Press the sun roof switch so that the sun roof moves to the rearmost position (completely open).

HINT: Release the switch.

HINT: Press the switch (in the completely open position) in again for at least 5 seconds so that the sun roof closes.

HINT: Release the switch.

HINT: Close the sun roof and carry out calibration again.
