Mechanical Cable Internal Handle Rear Side Door, Replacing

Remove the door panel. See Panel, Rear Side Door, Replacing (-2003) or Panel Rear Side Door, Replacing (2004-).

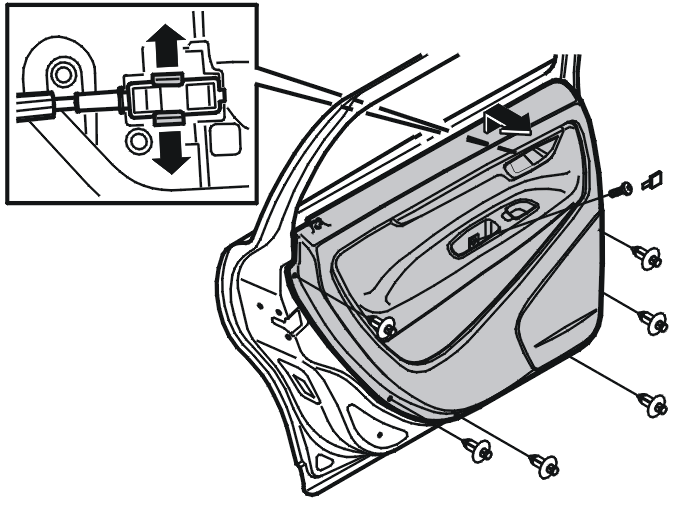

Fig 1: Rear Side Door Panel
GLL107091Courtesy of VOLVO CARS OF NORTH AMERICA.

Unhook the mechanical cable at the lock.

Open the catches.

Lift out the mechanical cable.

Install:

In reverse order.
