Handle, Outer Rear, Side Door, Replacing

The window must be in the uppermost position.

Remove the run-off profile. See Run-Off Profile And Bracket .

NOTE: Only the run-off profile needs to be removed.

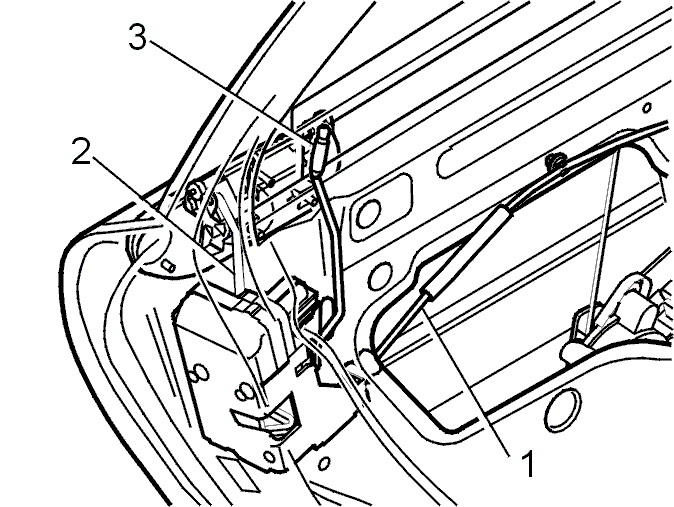

Fig 1: Removing Link For Handle And Lock Button And Unhooking End Of Mechanical Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Unhook the cable for the inner door opener (1).

Unhook the connecting rod for the lock button (3).

Remove the connecting rod for the outer door handle (2).

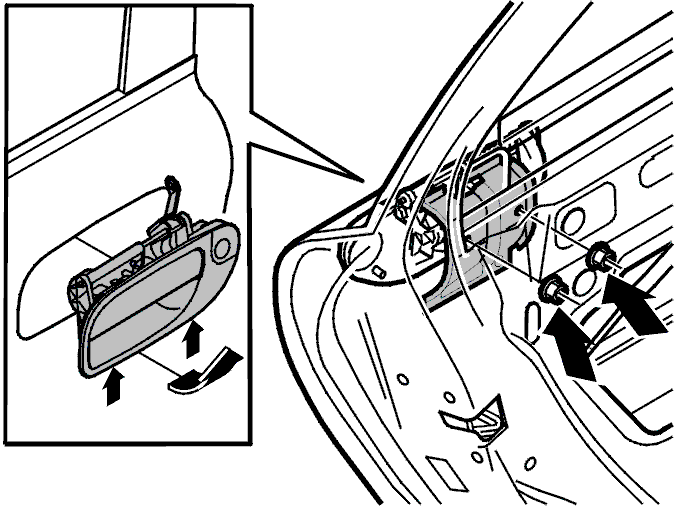

Fig 2: Removing Screws, Pressing Snap Fasteners Up And Out, And Twisting Handle Away From Door

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the 2 M6 screws.

Press the two snap fasteners up and out.

Twist the handle away from the door.

NOTE:

Do not damage the paintwork.

Install:

In reverse order.
