Lock Cylinder, Replacing

Remove:

• the outer handle, see Handle, Outer, Front, Side Door (Non Deadlock), Replacing  if the car is not equipped with deadlocks or see Handle, Outer, Front, Side Door (Deadlock), Replacing  if the car is equipped with deadlocks.

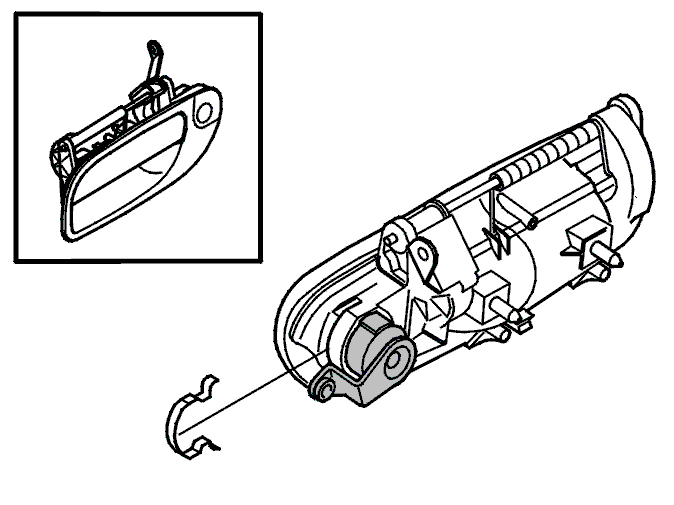

Fig 1: Removing Clip And Lock Cylinder

Courtesy of VOLVO CARS OF NORTH AMERICA.

• the clip.

• the lock cylinder.

Install:

In reverse order.
