Headlamp Control Module (HCM): Removal

Remove the left-hand front seat. See Front Seat, Replacing .

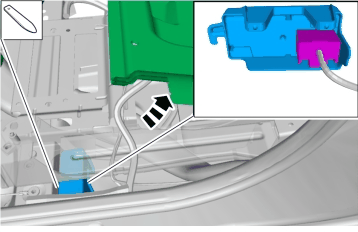

Fig 1: Identifying Front Seat And Connector

GLL156277

Courtesy of VOLVO CARS OF NORTH AMERICA.
