CD reader, RTI (road traffic information), replacing: Removal

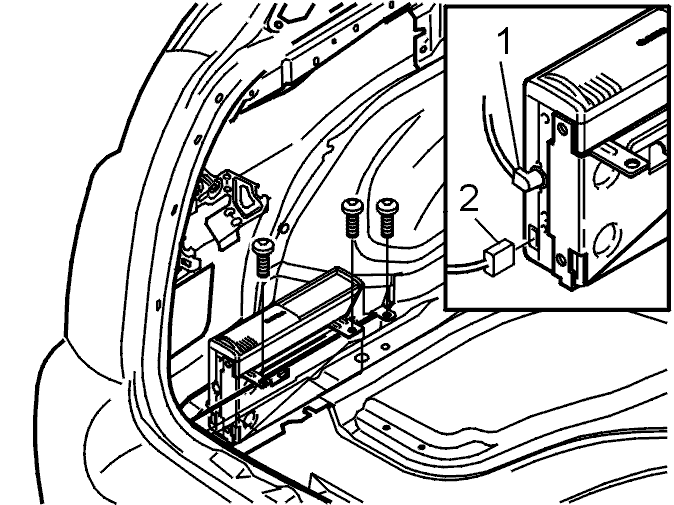

Fig 1: Identifying CD Reader & RTI (Road Traffic Information) Connectors

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove Side panel, cargo compartment, replacing
• Remove the three screws as shown in the illustration
• Disconnect the connectors (1.2).
