Loudspeaker, D-post, replacing
>>
Removing the loudspeaker in the D-post
Removing the loudspeaker in the D-post

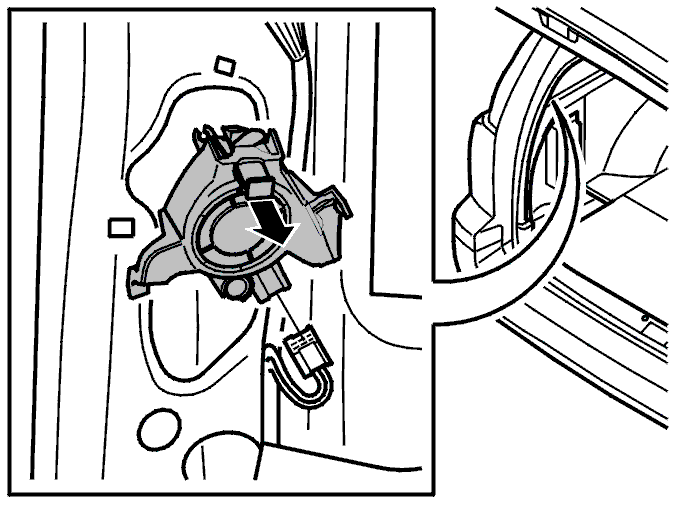

Fig 1: Removing Loudspeaker In D-Post
Courtesy of VOLVO CARS OF NORTH AMERICA.
Detach the loudspeaker grille by releasing it at the lower edge and pulling straight downwards
Pull out the clips
Angle out the loudspeaker. Disconnect the connector.
