Side panel, cargo compartment, replacing

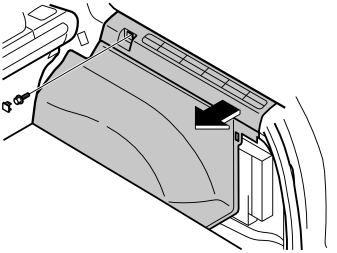

Removing the cargo compartment side panel
Remove:
- the side panel cover. See Cargo compartment side panel cover
- the blind cover plug (cover)
- the screw.
CAUTION:
Grasp the rear edge so that the clips release. Change your grip and pull off the clips by pulling forward.
Fold the panel down so that it is parallel with the floor and lift upwards.
Installing the cargo compartment side panel
Install:
In reverse order.
CAUTION:
The floor hatches must be removed before the panel can be installed.
