Extra audio input (AUX)

Operation Number(s):  3362953

Special tools
	T9512639 REMOVAL TOOL (COLOR CODE: WHITE)  Tool number:  T9512639 Tool description:  REMOVAL TOOL (COLOR CODE: WHITE) Tool boards:

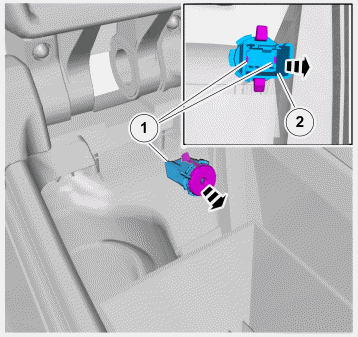

Fig 1: Locating Cigarette Lighter Plug

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the cigarette lighter unit/rear power outlet. Cigarette lighter assembly/electrical socket rear, replacing

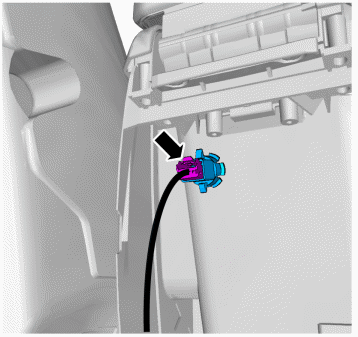

Fig 2: Locating Cigarette Lighter Assembly

Courtesy of VOLVO CARS OF NORTH AMERICA.

9512639

To install, reverse the removal procedure
