Removing the front panel

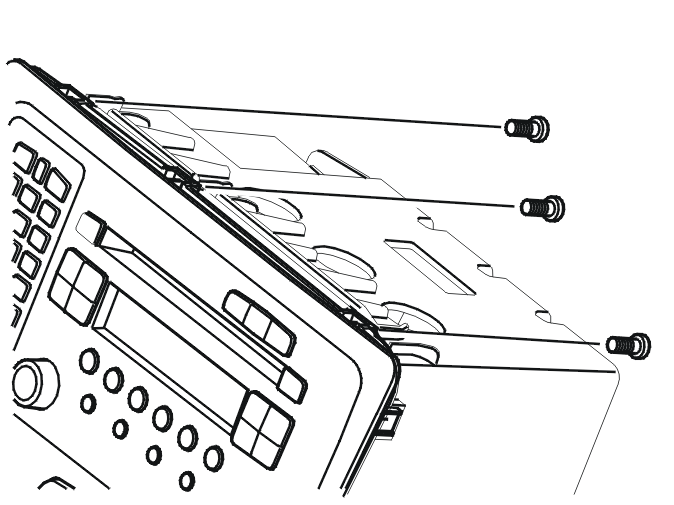

Fig 1: Identifying Screws And Front Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the 3 screws.

Fig 2: Identifying Catches And Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Detach the 6 catches from around the panel.

Remove the panel. See the illustration.
