Removing the dashboard environment panel

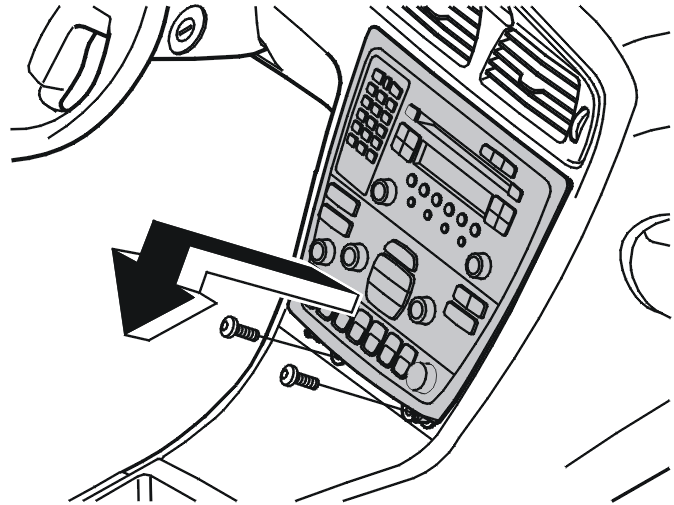

Fig 1: Angle Out Entire Infotainment Control Module (ICM) And Dashboard Environment Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the 2 screws
• the dashboard environment panel by bending backward and downwards to the side
• the connectors.
