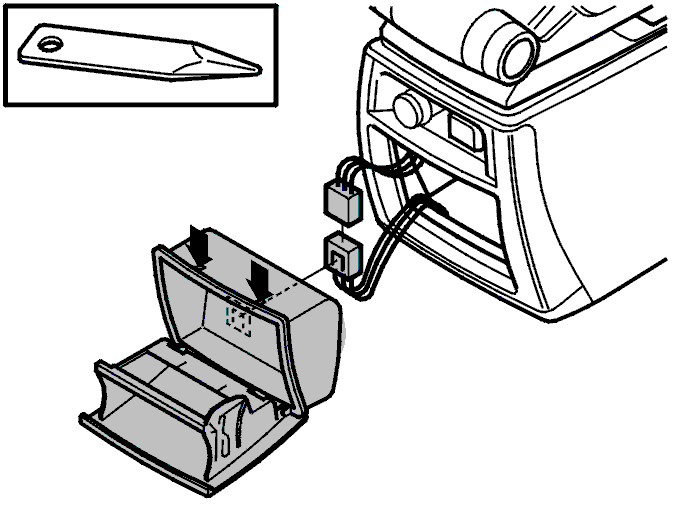

Replacing the rear ashtray
Courtesy of VOLVO CARS OF NORTH AMERICA.
- Open the ashtray so that it passes the hooks
- Release the ashtray by pressing the top edge
- Press down slightly
- Release the catches on the side
- Pull the holder backwards
- Remove the connector.
Install:
In reverse order.
