Cable routing

Fig 1: Identifying Cable Ducts And Tie Strap

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Route the two cables under the carpet, along the left-hand side of the car, to the rear door.
• Route the cable further under and along the front cable duct (1). Continue along the right-hand side of the rear cable duct (2).

  On the large cable harness is a black/white (SB/W) solid core wire connected to one of the large connectors. This shall subsequently be connected to the relay box on the left-hand side in the bulkhead.

• Securely clamp the cables at the cable duct with tie strap (3) from the kit.

Fig 2  applies to cars up to and including model year -2004

Fig 2: Identifying Cable Duct, Harness, And Ground Terminals -2004

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3  applies to cars from and including model year 2005-

Fig 3: Identifying Cable Duct, Harness, And Ground Terminals 2005-

Courtesy of VOLVO CARS OF NORTH AMERICA.

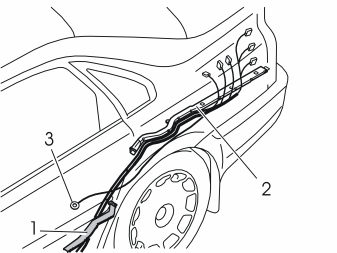

• Route the two cables further along the right-hand side of the cable duct (1) and under the cables connected there. Remove the connectors if necessary.
• Route them in the cargo compartment along the existing cable duct/cable harness (2) at the side of the wheel housing and position them as shown in the illustration.
• Applies to cars up to and including model year -2004:

  Connect the ground cable at the rear of the ground terminals (3) under the carpet under the seat cushion. Tighten the ground screw firmly.

• Applies to cars from and including model year 2005-:

  Connect the ground cable in the ground terminal (3) in the rear crossmember behind the battery. Tighten the ground screw firmly.
