Installing the loudspeaker and the microphone

Fig 1: Pressing In Catches At Same Time And Pulling Head Restraint Up

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press in the two catches (1) on the driver's seat. Pull up and remove the head restraint (2).

Fig 2: Removing Upholstery From Head Restraint

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the upholstery from the head restraint. If the zip fastener catch is missing on the zip fastener, detach the teeth at the ends of the zip fastener. Then pull the zip fastener apart.

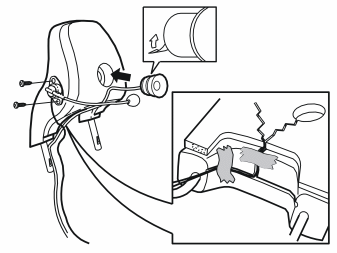

Fig 3: Installing New Swan Neck Microphone, Routing Cables Down, And Taping Cables In Head Restraint Channel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the backing from the double-sided adhesive tape on the reverse of the loudspeaker. Secure the loudspeaker in the cut out on the head restraint.
Install the new swan neck microphone on the right hand side of the head restraint. Use two new screws.
Route both cables down into the existing channel in the head restraint. Continue along the support leg
Tape the cables in the channel on the head restraint.

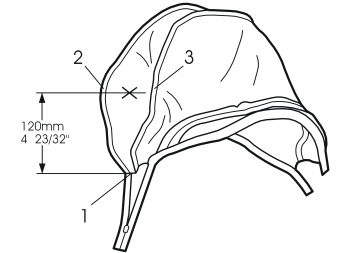

Fig 4: Marking Up For Holes In Head Restraint Upholstery

Courtesy of VOLVO CARS OF NORTH AMERICA.

Turn the head restraint upholstery inside out.
Mark up for holes on the right hand side of the head restraint. Measure from the underside (1) of the side 120 mm (4 23/32") upwards. Mark out between the two seams (2.3).

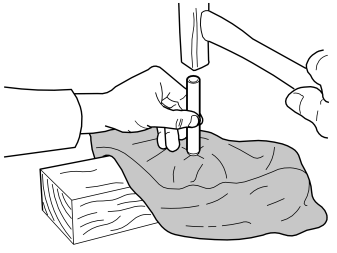

Fig 5: Punching Out Holes In Head Restraint Upholstery

Courtesy of VOLVO CARS OF NORTH AMERICA.

Punch out the hole using the hole punch from the kit. Use a wooden or cork underlay.
Turn the upholstery the correct way.
Carefully thread the upholstery over the microphone and the head restraint.

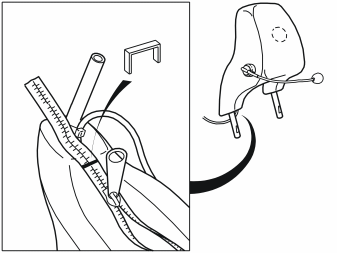

Fig 6: Locking Ends Using Staples

Courtesy of VOLVO CARS OF NORTH AMERICA.

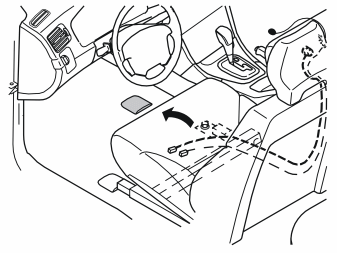

Fig 7: Routing Cables Down Inside Upholstery And Down Under Seat

Courtesy of VOLVO CARS OF NORTH AMERICA.

Route the cables down inside the upholstery and down under the seat. Use a piece of wire or similar. Position the connectors in the left front edge of the seat.
Reinstall the head restraint.
Secure the cable onto the member under the seat.

Fig 8: Positioning Connectors Under Front Edge Of Seat

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the cover for the screw from the right hand front mounting for the left-hand front seat. Position the connectors under the front edge of the seat.
