Installation kit single DIN radio: Installation

Fig 1: Sliding Radio Bracket Up And Pressing Lower Mounting For Radio Bracket Towards Lower Edge Of Center Console

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Take out the new radio bracket
• Slide the radio bracket up so that the groove in the upper edge goes round the upper edge of the center console. At the same time press the lower mounting for the radio bracket towards the lower edge of the center console
• Tighten the radio bracket using the existing screws.

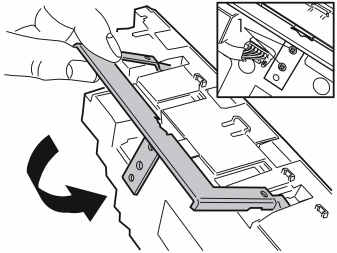

Fig 2: Turning Dashboard Environment Panel Upside Down

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Take out the new mounting bracket for the dashboard environment panel
• Turn the dashboard environment panel upside down
• Insert the mounting bracket leg in the holes on the lower side of the dashboard environment panel. Fold the bracket down so that the bracket is against the reverse of the dashboard environment panel
• Tighten the mounting bracket at the reverse of the dashboard environment panel. Use two new self-tapping screws (1).
