Installing the handset holder

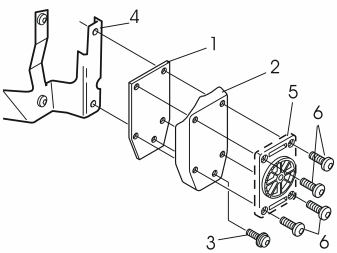

Fig 1: Identifying Handset Holder Mounting Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Install the bracing plate (1) and the cover (2) on the bracket (4), using the screw (3) from the kit. Do not tighten fully yet
• Secure the handset holder mounting plate (5) using the screws (6) from the kit
• Tighten the screw (3).

Applies to Nokia

Fig 2: Identifying Handset Holder Mounting Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to Ericsson

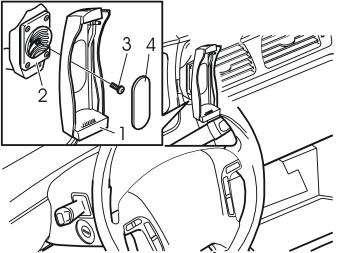

Fig 3: Identifying Handset Holder Mounting Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to the Ericsson T28

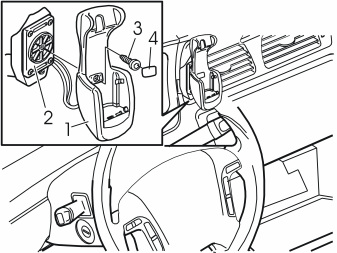

Fig 4: Identifying Handset Holder Mounting Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Screw the handset holder (1) onto the mounting plate (2) using the screw (3)
• Install the cover (4)
• Route the excess wiring from the handset holder behind the combined instrument panel.

Applies to the Ericsson T20

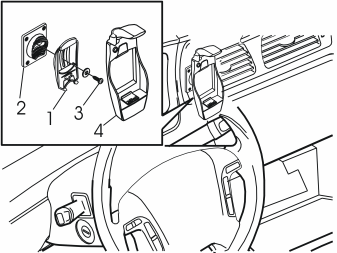

Fig 5: Identifying Carphone Holder Mounting Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Screw the handset mounting (1) onto the mounting plate (2) using the screw (3)
• Install the handset (4) on the mounting (1)
• Route the excess wiring from the handset holder behind the combined instrument panel.
