Carphone handset holder

Fig 1: Prying Off Panel In Front Of Gear Selector Lever

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the panel in front of the gear selector lever. Pry off the panel using a plastic weatherstrip tool.

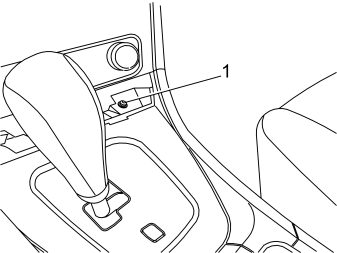

Fig 2: Remove Screw From Front Mounting On Passenger Side Of Center Console

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the screw (1) from the front mounting on the passenger side of the center console.

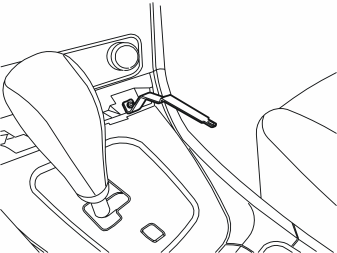

Fig 3: Secure Bracket on Front Mounting On Passenger Side Of Center Console

Courtesy of VOLVO CARS OF NORTH AMERICA.

Take the bracket out of the kit. Secure the bracket on the front mounting on the passenger side of the center console. Use the existing screw.

Fig 4: Place Handset Holder Along Panel For Gear Selector Lever And Clean Area Where Tape For Handset Holder Will Be Applied

Courtesy of VOLVO CARS OF NORTH AMERICA.

Place the handset holder along the panel for the gear selector lever on the passenger side. Mark up and clean the area where the tape for the handset holder will be applied
Take the wet wipe from the kit. Wipe the area clean. Dry the area.

Fig 5: Remove Backing From Double-Sided Adhesive Tape On Handset Holder

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 6: Prying Up End Of Bracket For Handset Holder, Slide Handset Holder Onto Bracket And Press Down Until Hook Engages

Courtesy of VOLVO CARS OF NORTH AMERICA.

Reinstall the panel in front of the gear selector lever
Pry up the end of the bracket for the handset holder slightly (A). Slide the handset holder on to the bracket. Press the holder down as far as possible until the hook on the underneath of the holder engages (B)
Press the rear edge of the holder down so that the tape fastens securely. Allow to harden for 24 hours before using the handset holder.

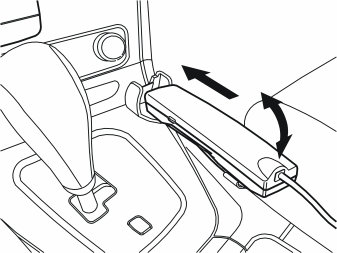

Fig 7: Secure Handset In Holder

Courtesy of VOLVO CARS OF NORTH AMERICA.

When securing the handset in the holder: Slide carphone into the front edge of the holder. Press forward slightly until the spring engages. Then press the rear edge down. When detaching the handset: Press the handset forward. Then pull upwards.

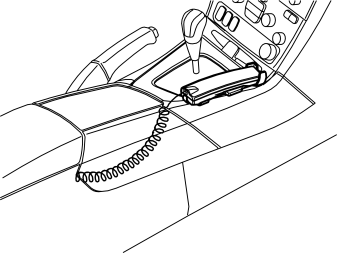

Fig 8: Identifying Carphone

Courtesy of VOLVO CARS OF NORTH AMERICA.

When using the handset with the holder installed on the passenger side of the gear selector lever. Pull the carphone cable out of the center console locker as shown in the illustration.

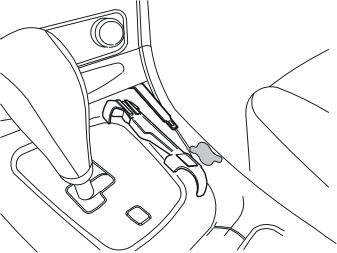

Fig 9: Remove Handset Holder

Courtesy of VOLVO CARS OF NORTH AMERICA.

When removing the handset holder: Lift the holder at the rear edge until the tape releases. Insert a small screwdriver in the hole on the handset holder. Press down with the screwdriver to release the catch (A). Pull the handset holder backwards. Ensure that the screwdriver does not scratch the panel when pulling the handset holder backward.
