Connection and cable routing

Fig 1: Pressing In Catches On Rear Brown Connector And Turning Up Lock Arm To Pull Out Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press in the catch on the rear brown connector in the cargo compartment fuse holder. Turn up the lock arm as far as possible and pull out the connector.

Fig 2: Pulling Apart Sides Of Holder For Connector And Pulling Out Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carefully pull apart the sides of the holder for the connector at the ends so that the connector can pass by the catches.
Pull out the connector.

Fig 3: Identifying Connector Terminals

Courtesy of VOLVO CARS OF NORTH AMERICA.

Take the cable harness from the kit and connect the blue (BL) cable in position 31 in the connector.
Refit the connector in the holder and reinstall the whole unit in the fuse holder.

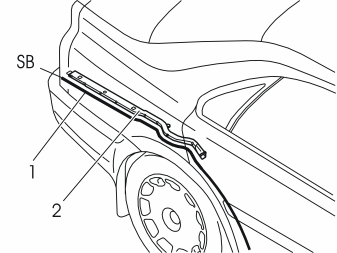

Fig 4: Identifying Tie Straps

Courtesy of VOLVO CARS OF NORTH AMERICA.

Route the cable harness forward as far to the right-hand side as possible.
Secure the foam rubber covered cable (1) at the existing cable harness by the rear crossmember and by the fuse holder as shown in the illustration. Use tie straps (2) (from the kit).

Fig 5: Identifying Black Ground Lead And Cable Duct

Courtesy of VOLVO CARS OF NORTH AMERICA.

Route the black ground lead (1) along the right-hand side of the cable duct (2) and into the passenger compartment.
Secure the cable at the cable duct. Use two tie straps from the kit.

Fig 6: Identifying Black Ground Cable And Front Ground Terminal

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fold the insulation panel out of the way.
Connect the black ground cable (1) to the front ground terminal (2). Use the existing ground screw. Tighten to approx. 10 Nm (8 lbf.ft.) .
Clamp any excess using tie straps from the kit.
Fold the insulation panel back into place.
Reinstall the seat cushion.
