Sub-antenna in bumper / amplifier

Remove the rear right panel in the cargo compartment.

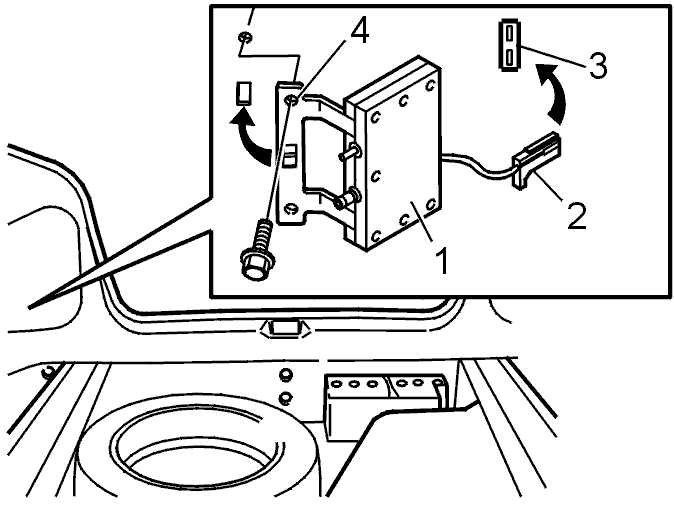

Fig 1: Sub-Antenna In Bumper / Amplifier
GLL104083Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the screw.

Disconnect the connector.

Install:

In reverse order.
