Handset, replacing (-2004)
>>
Removing the handset
>>
Replacing the rear ashtray
Replacing the rear ashtray

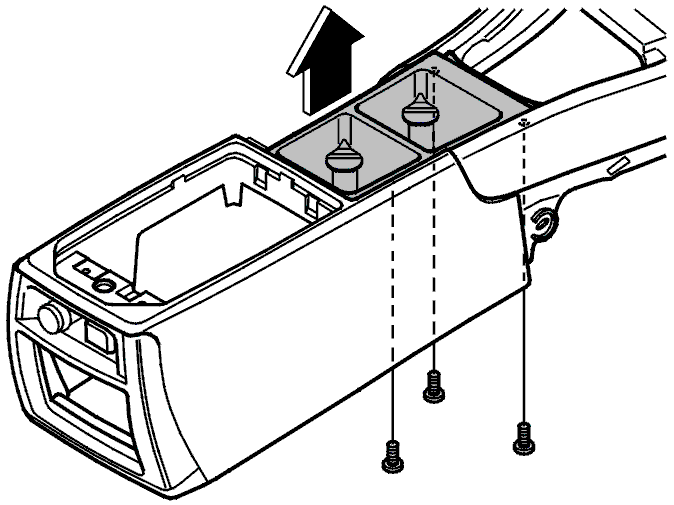

Fig 1: Center Ashtray
Courtesy of VOLVO CARS OF NORTH AMERICA.
Remove the three screws
Release the ashtray by pressing the top edge.
Install:
In reverse order.
Courtesy of VOLVO CARS OF NORTH AMERICA.
