Removing the phone module (PHM)

NOTE:

Only carphone module (PHM) with Volvo On Call has a spare battery.

Deactivate the phone module (PHM) by removing the auxiliary battery. See: Reserve battery Volvo On Call, replacing .

Remove the audio unit. See: Audio unit, replacing (2005-) .

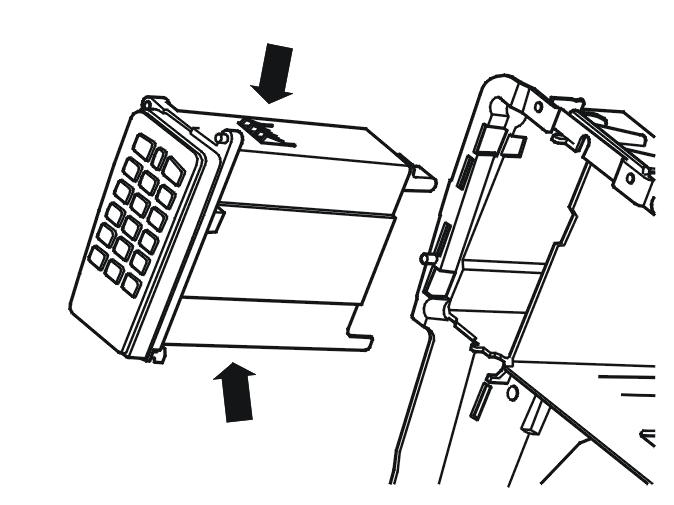

Fig 1: Pressing In Catches On Upper And Lower Edges Of Control Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press in the catches on the upper and lower edges of the control module. Remove the control module.
