Location of components

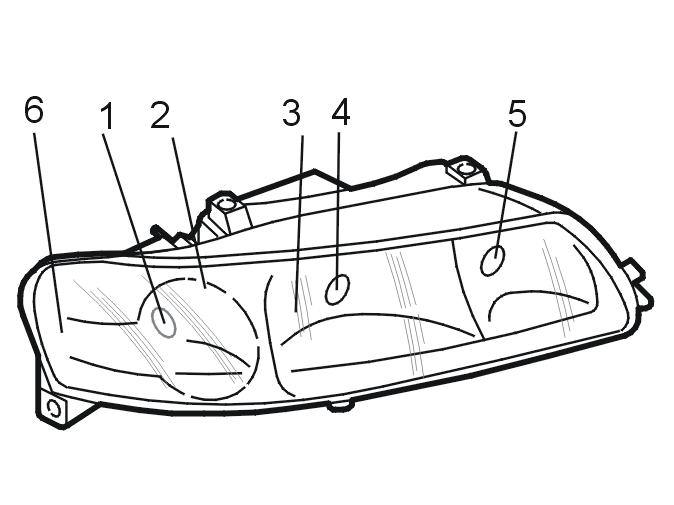

Fig 1: Headlamp Bulb Component Locations
GLL147245Courtesy of VOLVO CARS OF NORTH AMERICA.
  1. Turn signal lamps
  2. Parking lamps, applies to vehicles equipped with Bi Xenon lamps
  3. Parking lamps, applies to vehicles equipped with halogen lamps
  4. Dipped beam
  5. Main beam
  6. Sidemarker lamps front.
