Side windows, rear, removing

Detach the C-post panel. See Panel, C-post, replacing .

Detach the D-post panel. See Panel, D-post, replacing .

Cut out the window.

NOTE:

Use soap solution. This will facilitate cutting.

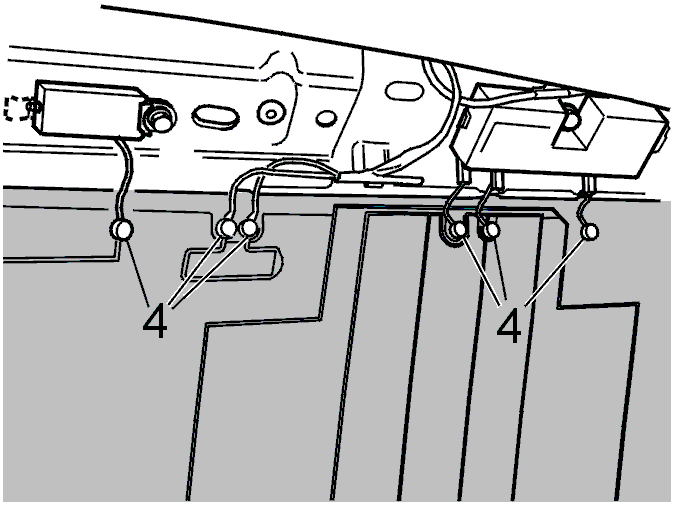

Fig 1: Disconnecting Connectors For Radio Antenna, RTI, TV, And Alarm

Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect the connectors for:

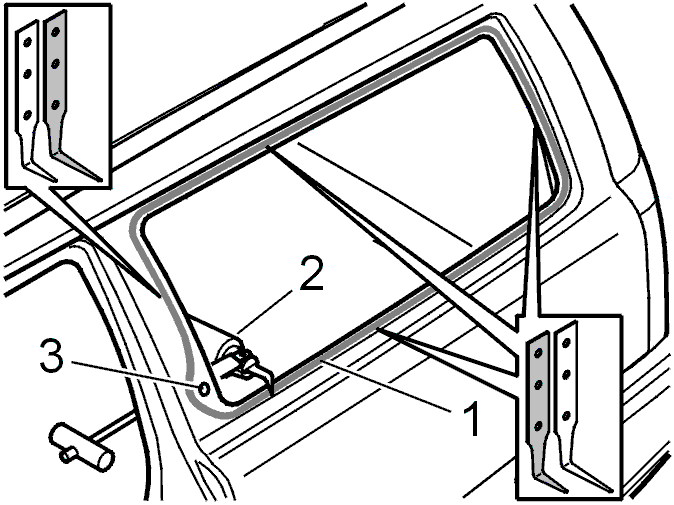

Fig 2: Locating PUR Bead, Windshield Knife, And Locating Pin

Courtesy of VOLVO CARS OF NORTH AMERICA.

(1) = PUR bead.

(2) = Windshield knife

(3) = Locating pin.

Cut along the marked edge.

Use a long blade against the C-post.

Otherwise use a short blade.

Be careful around the locating pin. Do not damage the paint work.

If the window is to be reused: Remove the PUR bead with a chisel.

When working with PUR on the body flange, see PUR on body flange .
