Tail Lamp
Courtesy of VOLVO CARS OF NORTH AMERICA.

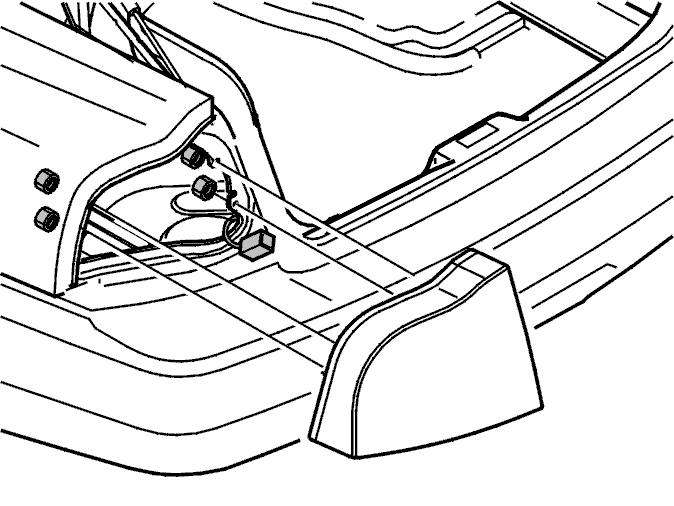

- Position the tail lamps
- Press the connector for the tailgate together. Place the tailgate connector in the tail lamp
- Position the nuts. Tighten the nuts. Tighten to 10
Nm
- Press the connector into place.
