Removing the Headlamp

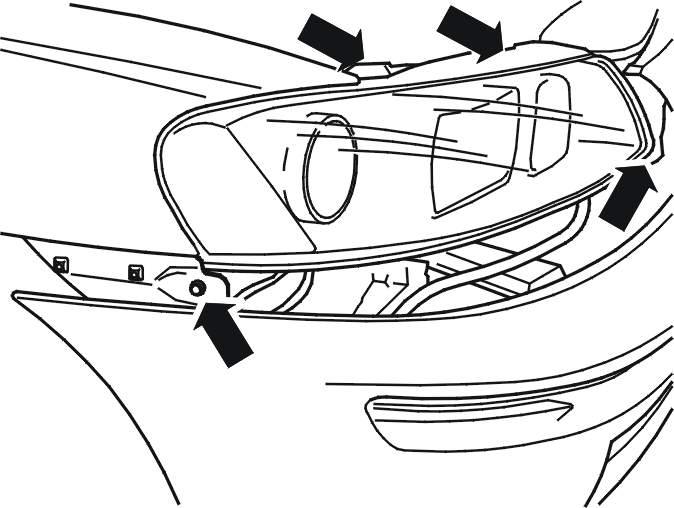

Fig 1: Headlamp Screw Location

GLL146362

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION: Position a guard over the casing when removing the headlamp.

Remove:

the 4 screws for the headlamp
the connectors
the headlamp.

NOTE: To replace the bulb, see Bulb Headlamp, Replacing .
