Bulb Parking Lamps Halogen Headlamps, Replacing

Removing bulb parking lamps halogen headlamps

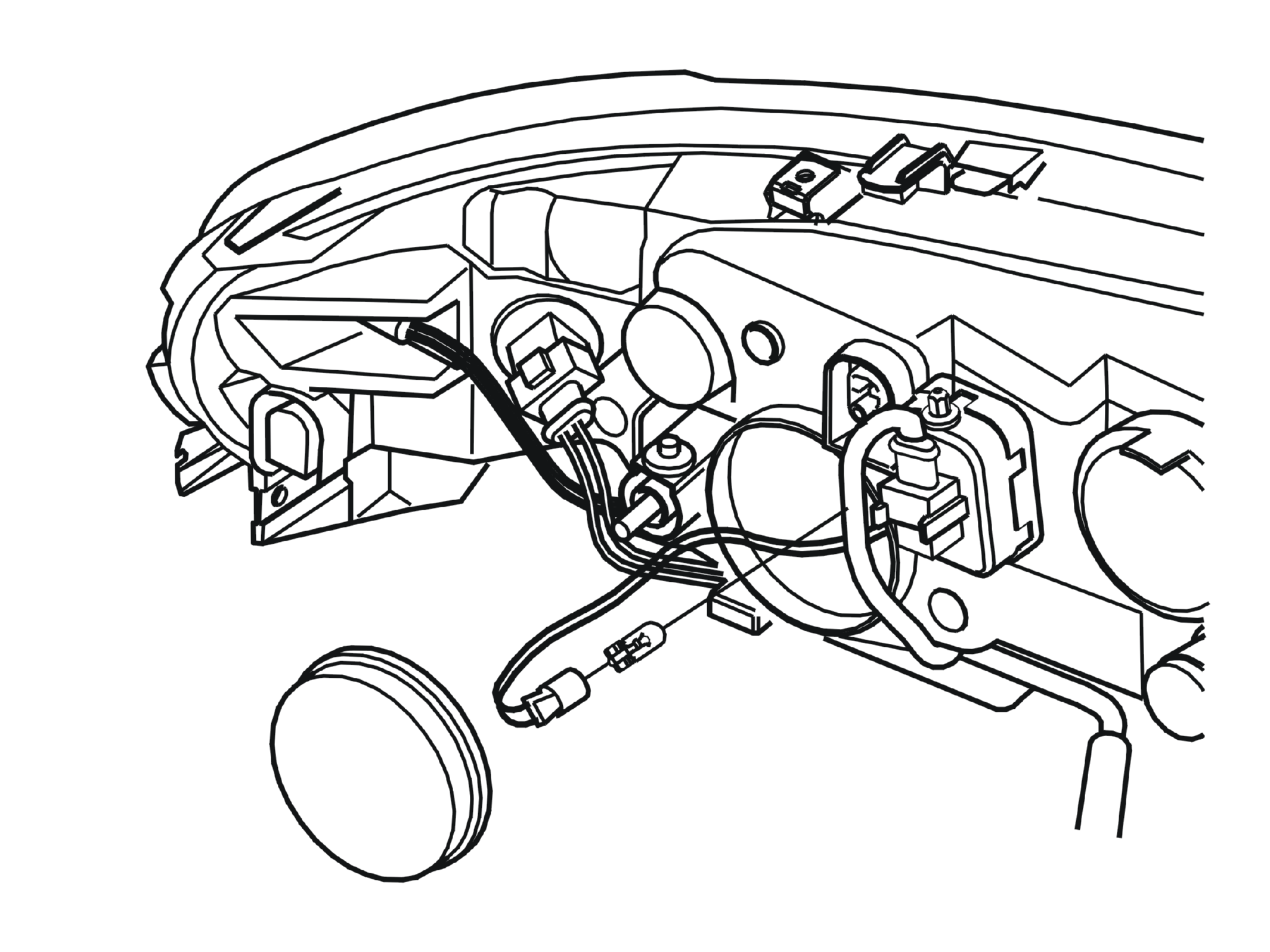

Fig 1: Removing Halogen Parking Lamp Bulbs

Courtesy of VOLVO CARS OF NORTH AMERICA.

HINT: Use round-nosed pliers, the bulb holder is difficult to access.

Remove:

• the cover
• the bulb holder by pressing in the catches on the side and pulling
• the bulb.

Installing bulb parking lamps halogen headlamps

Install:

• the bulb
• the bulb holder
• the cover.
