Bulb High Beam, Replacing

Removing bulb high beam

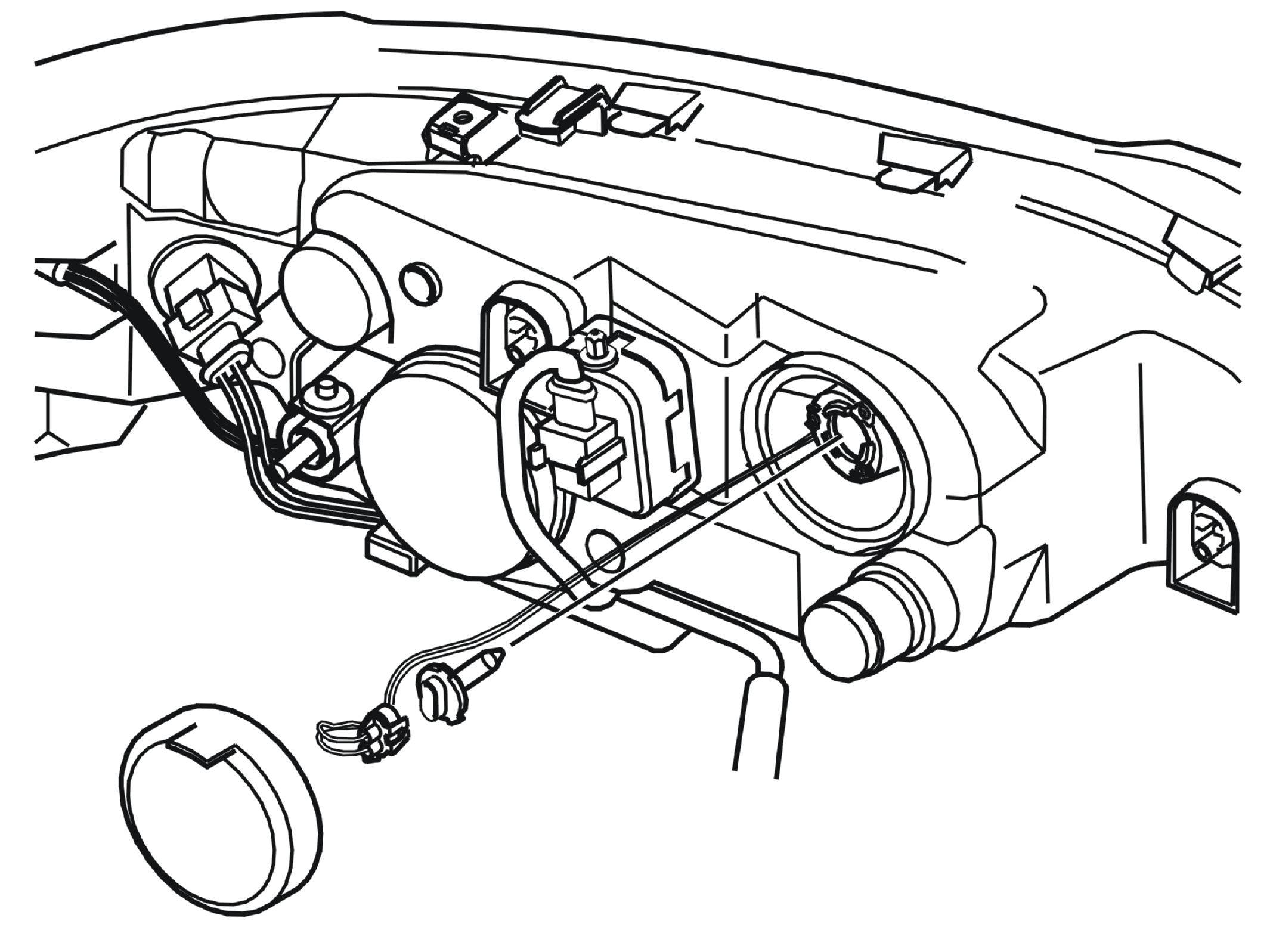

Fig 1: Removing High Beam Bulb

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the cover
• the bulb by pressing and twisting it
• the connector.

Installing the bulb high beam

Install:

• the connector
• the bulb, turn
• the cover.
