The Lamp Housing And Bulb

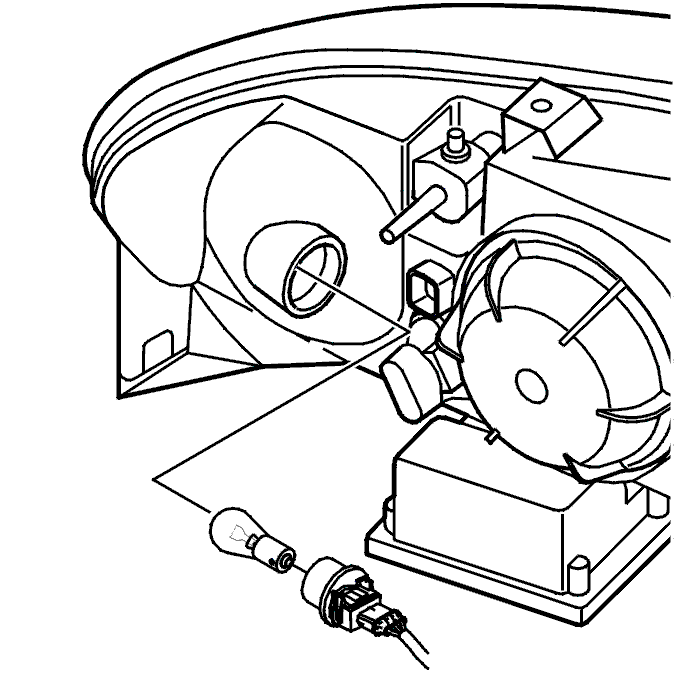

Fig 1: Identifying Turn Signal Lamp Bulbs

Courtesy of VOLVO CARS OF NORTH AMERICA.

To replace the turn signal lamp assembly, see Headlamp/Bulb, Replacing .

HINT: When replacing on the right-hand side of the car, remove the filler pipe from the windshield washer reservoir. See  Windshield Washer Fluid Reservoir, Replacing  .

• Remove the cover from the headlamp
• Twist off the bulb holder with the connector
• Twist out the bulb.
