Headlamp/Bulb, Replacing: Removal: Headlamps

Fig 1: Bumper Cover Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Switch off the ignition
• Set the switch for external lighting to zero
• Remove the bumper cover on the relevant side. Remove the clips for the grille. See Bumper, Front, Replacing (-2003), Bumper Front, Replacing (2004) or Bumper Front, Replacing (2005)
• Remove the upper screws from the guide for the bumper cover
• Remove the lower front screw. Slacken off the rear screw.

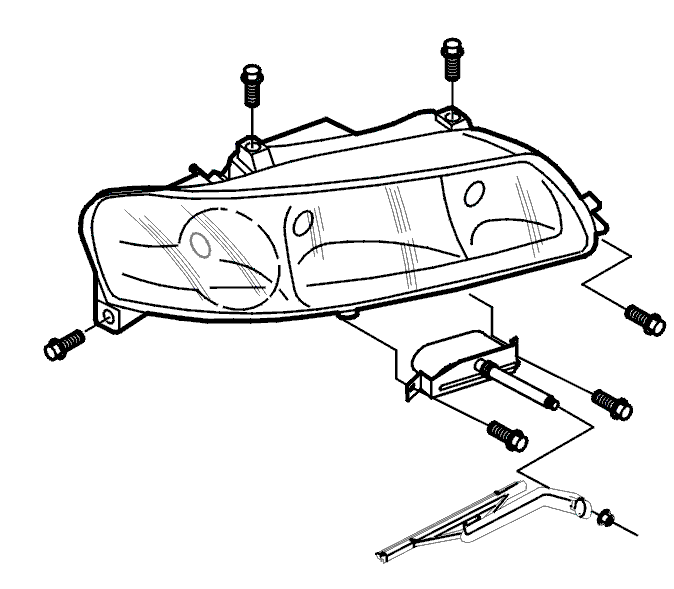

Fig 2: Headlamp And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Tension the guide. Remove the screw on the outside of the headlamp
• Carefully tension the casing. Remove the innermost screw from the headlamp
• Remove the uppermost screws from the headlamp
• Apply tape as protection above the casing at the headlamp.

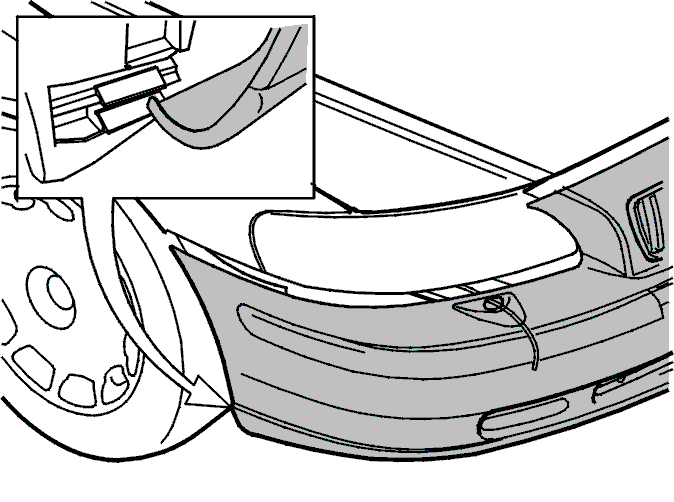

Fig 3: Front Bumper And Headlamp

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Carefully pry out the casing. Position the lower edge of the end of the casing on the guide. Hold the cover in position
• Release the headlamp
• Pull off the washer hose
• Separate and remove the connectors
• Remove the headlamp
• Remove the headlamp wiper motor. See Motor, Headlamp Wiper, Replacing .

Other information

• To replace the bulb. See Bulb, Headlamp, Replacing
• See If Misting Problems Arise .

Fig 4: Locating Turn Signal Lamp Bulb, Parking Lamp Bulb And Low And High Beam Headlamp Bulbs

Courtesy of VOLVO CARS OF NORTH AMERICA.

1. Turn signal lamps
2. Parking lamps
3. Dipped beam
4. High beam.
