Masking With Tape

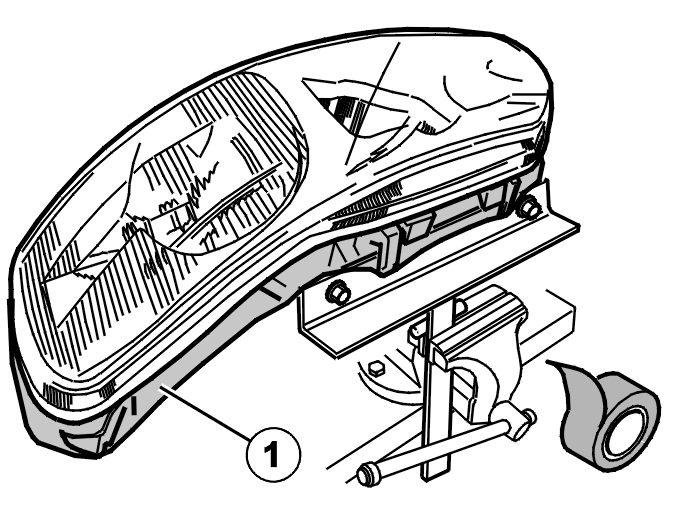

Fig 1: Identifying Headlamp Housing Taped
GLL105970Courtesy of VOLVO CARS OF NORTH AMERICA.
CAUTION: To protect the headlight housing from adhesive residue, tape the headlight housing with masking tape.

Tape around the housing as shown (1) (everything that is block) against the edge of the lens. Also tape at the decor strip attachments.
