Fitting Butyl Tape

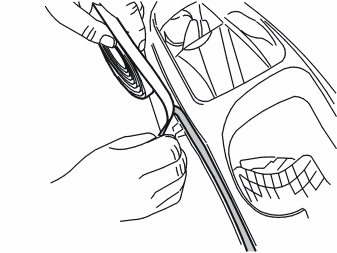

Fig 1: Fitting Butyl Tape
GLL148495Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the protective paper and masking tape from over the reflector/decor panel and light housing.

If necessary, carefully blow clean around the reflector and headlight housing.

Ensure that there are no lens pieces in the headlight housing.

Use Butyl tape, 1161782  in the groove around the headlight, starting at the lower edge. Avoid touching the tape.
