Bulb, Headlamp, Replacing
>>
Removing bulbs
>>
High Beam
High Beam

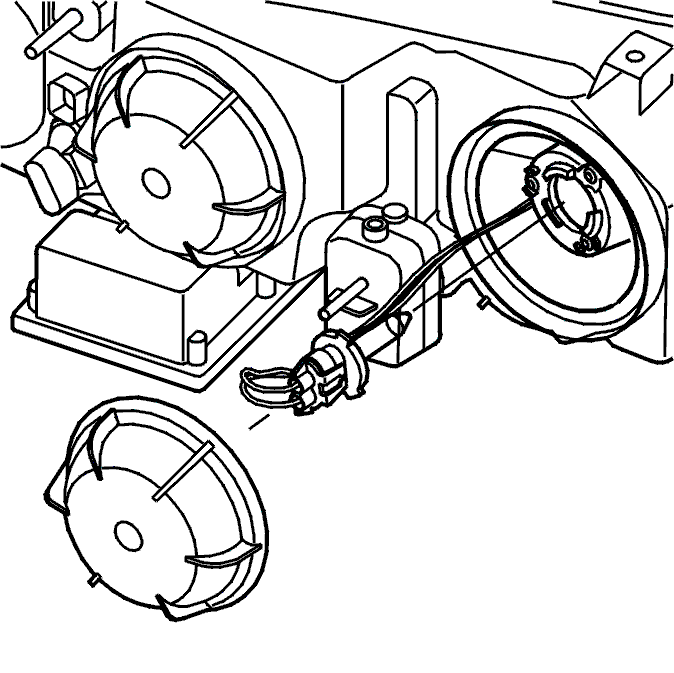

Fig 1: High Beam, Cover And Connector
Courtesy of VOLVO CARS OF NORTH AMERICA.
Twist off the cover
Release the catch from the connector. Pull off the connector
Remove the bulb.
Courtesy of VOLVO CARS OF NORTH AMERICA.
