Home
>>
Volvo
>>
2002
>>
S60 Base, 2.4 61, Standard
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Headlights
>>
Lighting - Removal, Replacement And Installation
>>
Bulbs (2001-2003)
>>
Bulb, Headlamp, Replacing
>>
Removing bulbs
>>
Headlamp Parking Lamps
Headlamp Parking Lamps

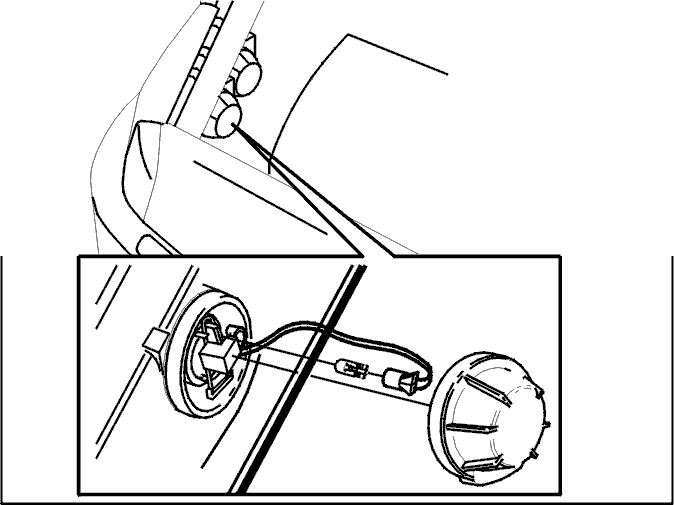

Fig 1: Headlamp Parking Lamps And Cover
Courtesy of VOLVO CARS OF NORTH AMERICA.
Twist off the cover
Pull off the holder with the bulb
Release the catch from the connector. Pull off the connector.
Courtesy of VOLVO CARS OF NORTH AMERICA.
